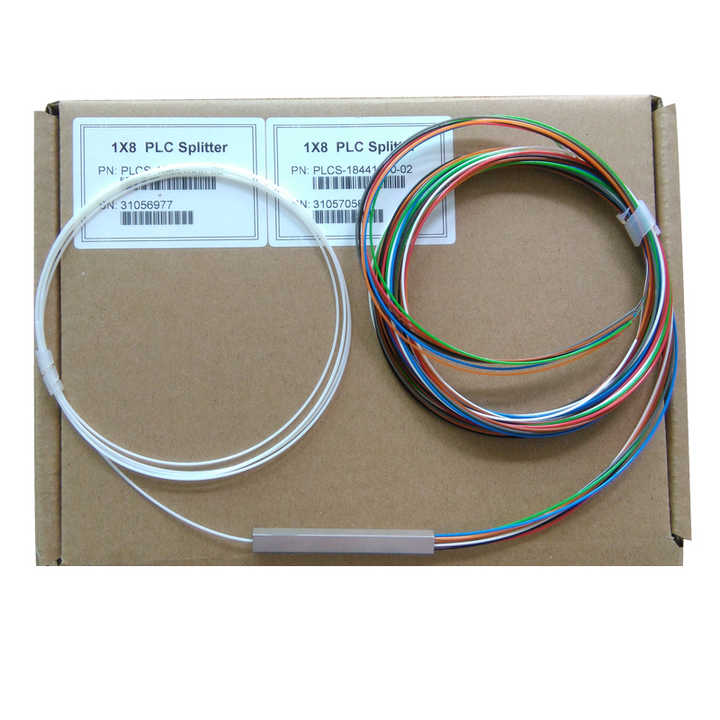

FTTH 1*n 2*n Steel Tube Mini Type SC APC G657A 0.9mm PLC Splitter optico 1x8 PLC splitter without connector with connector
Short Description:
Parameters | |
Specifications | Units |
Channel Number | |
1x8 | |
Operation Wavelength | |
1260~1650 | nm |
Insertion Loss | |
≤10.7 | dB |
Uniformity | |
≤1.2 | dB |
Polarization Dependent Loss | |
≤0.1 | dB |
Return Loss | |
≥55 | dB |
Directivity | |
≥55 | dB |
Fiber Type | |
G657A1 | |
Pigtail Type | |
Input:0.9mm loose tube | |
Output: 0.9mm loose tube | |
Input Length | |
1.0+0.1 | m |
Output Length | |
1.0+0.1 | m |
Connector Type | |
no | |
Tube Color | |
Input:White | |
Output: White | |
Operating Temperature | |
-40~+80 | ℃ |
Storage Temperature | |
-40~+85 | ℃ |
