Model
|

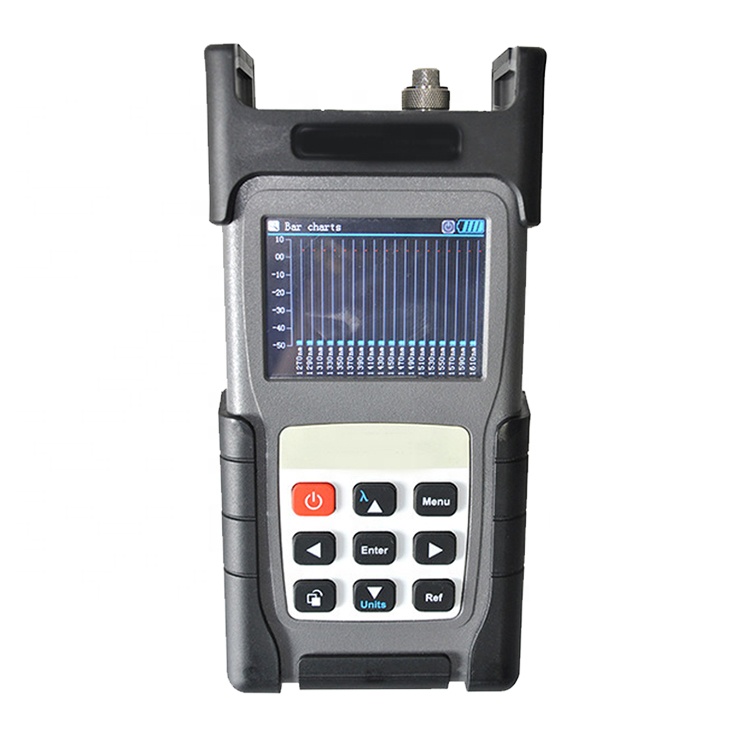

3226A Optical Power Meter
|
|
Wavelength Range
|
1270 ~ 1610 nm
|
|
Number of Channels
|
18
|
|
Wavelength resolution
|
20nm
|
|
Measuring Wavelength (nm)
|
1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/1470/1490/1510/1530/1550/1570/1590/1610
|
|
Dynamic range
|
+10 to -40dBm
|
|
Resolution
|
0.01dB
|
|
Optical interface
|
FC/PC(FC, LC, ST available)
|
|
Operating Temperature
|
-10 to +60℃
|
|
Power supply
|
Rechargeable Battery/AC power adapter
|
|
Time of Operating
|
10h
|
|
Dimension
|
220cm*110cm*70cm
|
|
Weight
|
850g
|
