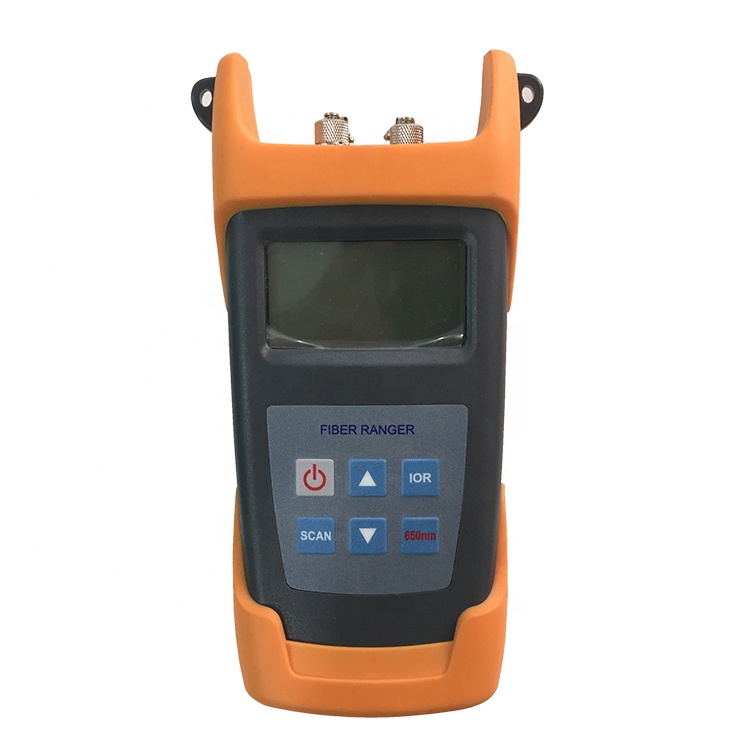

FTTH Optiacl Fiber Ranger Test Handheld Mini OTDR Tester with VFL Visual Fault Locator
Short Description:
| Model | WT-3304 Mini OTDR |
| Operating Wavelength | 1550nm(1310nm Optional) |
| Fiber Type | 9/125um SM Fiber |
| Optical Connector Type | FC/PC |
| Detector Type | InGaAs |
| Peak Power of laser(mW) | ≥60 |
| Max.Distance | |
| Reflection Event | 60 (≥1dB) (km) |
| Non-reflection Event | 20 (≥2.5dB) (km) |
| Measurement Unit | m |
| Reflection Event Dead Zone(m) | 15 |
| Distance Accuracy(Reflection Event)(m) | ± {2m+2*10(-3)*Distance(m) } |
| VFL | |
| Wavelength(nm) | 650 |
| Output Power(mW) | >1 |
| Power Supply | AA,3pcs |
| Battery Operating Time | |
| Measurements | ≥5000 |
| Hours | >10 |
| Working Temperature(°C) | -5~40 |
| Storage Temperature(°C) | -10~60 |
| Humidity(%) | 0~85(Non-condensation) |
| Dimensions(mm) | 190*100*5 |
| Weight(g) | 450 |
