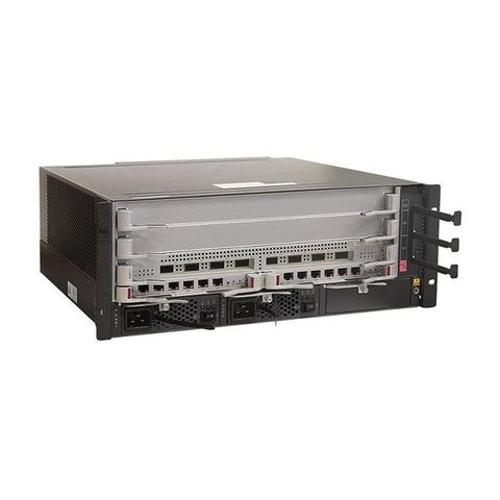

S9703 Core Switch Network Switch
Short Description:
| Switching capacity | |
| 2.88/5.76 Tbit/s | |
| 6.72/14.72 Tbit/s | 8.64/18.56 Tbit/s |
| Packet forwarding rate | |
| 2160 Mpps | |
| 2880/5040 Mpps | 3840/6480 Mpps |
| Service slots | |
| 3 | |
| 6 | 12 |
| Wireless network management | Native AC |
| User management | Unified user management |
| iPCA quality awareness | Marking real service packets to obtain real-time count of dropped packets and packet loss ratio |
| SVF virtualization | Virtualizing access switches (ASs) and APs into one logical device to simplify management and maintenance |
| VLAN | Access, trunk, and hybrid interfaces supported |
| MAC address | Automatic learning and aging of MAC addresses |
| STP/ERPS | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| IP routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| Multicast | IGMP v1/v2/v3, IGMPv1/v2/v3 snooping |
| MPLS | MPLS functions |
| BFD for BGP/IS-IS/OSPF/static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Configuration and maintenance | Console, Telnet, and SSH login |
| Security and management | 802.1x authentication and Portal authentication |
| Value-added services | Firewall |
| Interoperability | Interoperable with VBST (compatible with PVST/PVST+/RPVST) |
| Energy saving | Supports IEEE 802.3az: Energy Efficient Ethernet (EEE) |
| Dimensions (W x D x H) | |
| 442 mm × 476 mm × 175 mm | |
| 442 mm × 476 mm × 442 mm | 442 mm × 476 mm × 664 mm |
| Chassis weight (empty) | |
| <15Kg | |
| <30Kg | <45Kg |
| Operating voltage | DC:–38.4V~–72V AC:90V~290V |
| Power supply capability of the equipment | |
| 2200W | |
| 4400W | 6600W |
