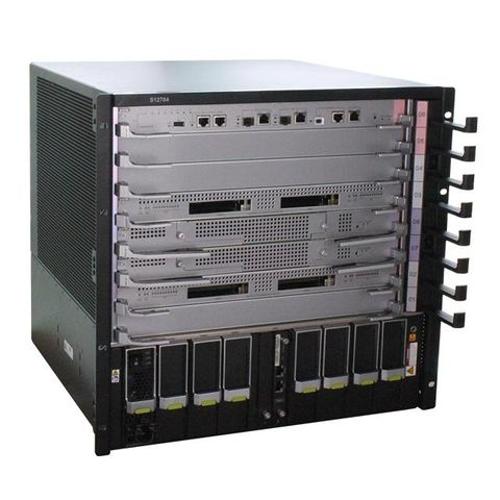

S12708 Network Layer 3 10G Core Switch
Short Description:
| Switching capacity | |
| 12.32/27.04 Tbps | 17.44/37.28 Tbps |
| Packet forwarding rate | |
| 6240 /9120 Mpps | 9120/12960 Mpps |
| MPU slots | |
| 2 | |
| 2 | |
| SFU slots | |
| 4 | |
| 4 | |
| Service card slots | |
| 8 | 12 |
| Architecture | CLOS |
| Redundancy design | MPUs, SFUs, power supplies, and fan modules |
| CSS2 | 1+N backup of MPUs in a cluster |
| Wireless network management | Native AC |
| User management | Native BRAS |
| VLAN | LNP, access, trunk, and hybrid interface type |
| ARP | 256K ARP entries |
| MAC address | 1M MAC address entries |
| Ring network protection | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| IP routing | 3M IPv4 routing entries |
| Multicast | 128K multicast routing entries |
| MPLS | Basic MPLS functions |
| Reliability | LACP and E-Trunk |
| QoS | 256K ACLs |
| Configuration and maintenance | Terminal access services such as console port login, Telnet, and SSH |
| Security and management | MAC address, Portal, 802.1x, and DHCP snooping triggered authentication |
| Value-added services | Firewall |
| Buffer capacity | 1.5 GB per card |
| Energy saving | Energy Efficient Ethernet (802.3az) |
| Dimensions (H x W x D, mm) | |
| 663.95 x 442 x 489, 15U | 832.75 x 442 x 489, 19U |
| Weight (empty chassis) | |
| 19.8 kg | 38.45 kg |
| Operating voltage | DC: –38.4 V to –72VAC: 90 V to 290 V |
| Total power capacity | |
| 6600 W | |
| 6600 W |
