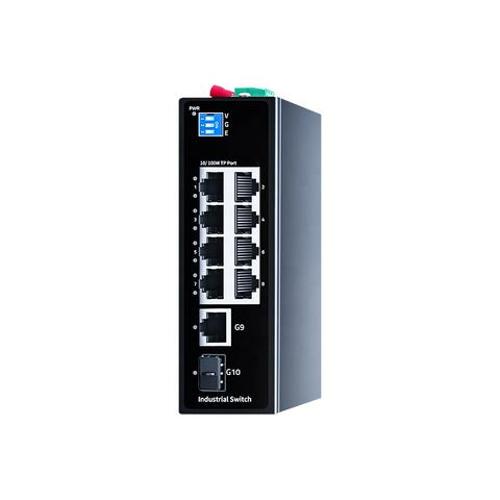

10 Port 100M Industrial Ethernet Switch Gigabit Uplink SFP Port DIN Rail IP40 Wall Mounted Network Ethernet Switcher DC12-55V
Short Description:
| Power | DC12-55V |
| Ethernet Port | 8* 100M RJ45 Ports1* Gigabit Uplink Ports1*Gigabit SFP Ports |
| Bandwidth | 5.6Gbps |
| PackageForwarding Rate | 4.166Mpps |
| MAC Address | 1K |
| Jumbo frame | 9.6Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 |
| NetworkProtocols | IEEE802.3IEEE802.3uIEEE802.3z |
| Network Media | 10BASE-T: Cat5 or more UTP(≤100 m)100BASE-TX: Cat5 or more UTP(≤100 m)1000BASE-TX: Cat5 or more UTP(≤100 m) |
| Fiber Media | Multi-mode:850nm,1310nm. transmission distance:550m/2KmSingle-mode : 1310nm , 1550nm. transmission distance :20/40/60/80/100/120Km |
| Safety Certificate | CE ,FCC,ROHS |
| WorkingEnvironment | Operating Temperature: -40~75℃Storage Temperature: -40~85℃Humidity: 5%~95 %( non-condensing) |
| LED indicator | PWR, 1-8 Green, G10 |
| PWR | Lighting:PoweredUn-Light:No Power |
| 1-8 Green | Blinking slowly: 10/100 links are normalOff: link failureFlash: link data transfer |
| G10 | Steady on: The optical fiber connection is normalNo light: no fiber connectionFlash: link data transfer |
| DIP function | V,G,E(open up, close down) |
| V | V:VLAN mode, ports 1-8 are isolated, and both communicate withports 9 and 10 |
| G | G:Normal mode |
| E | E:In extension mode, ports 1-8 are reduced to 10M and can beextended to 250 meters |
| Specification Size | Product Size:138×108×44 mmPacking Szie:245×190×60mmProduct net weight: 0.567KGProduct gross weight: 0.701 KG (excluding power supply) |
| Voltage | Voltage input: DC12~55VPower wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/ DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
| Packing List | Industrial Switch: 1 unitUser Guide:1unitCertificate warranty card:1unitHanging ears: 1 unit |
