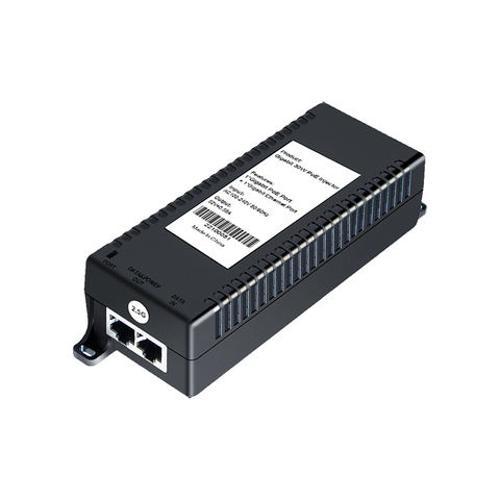

POE Injector 30W 2.5Gbps with IEEE 802.3at/af Plug and Play Gigabit PoE Injector Adapter for IP Camera,Wireless AP,Surveillance
Short Description:
| Power | AC 100-240 V |
| Ethernet | 1*10/100/1000M/2.5G Ethernet Port1*10/100/1000M/2.5G PoE Port |
| Network protocol | IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3bz (2.5GBase-T)IEEE802.3x (Flow control) |
| PoE protocol | IEEE802.3af(15.4W) IEEE802.3at(25.4W) POE output voltage: DC44-57V |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT)Shock: IEC 60068-2-27Free Fall: IEC 60068-2-32Vibration: IEC 60068-2-6 |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or above UTP(≤100m) |
| Security Certificae | CE,FCC,RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-40~80°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~90%,non-condensing |
| LED Indicators | PROT |
| Structure Size | Product Size:142* 55*40MMPackage Size:203* 160*55MMProduct Net-Weight:0.2KGProduct Gross-Weight:0.4KG |
| Packing Info | MEAS:580*335*445MMPacking Qty:40PCSPacking weight:17KG |
| Power Voltage | Input Voltage: AC 100-240 V |
| Package List | PoE Injector * 1 p csUser Manual * 1 pcsPower Cable * 1pcs |
