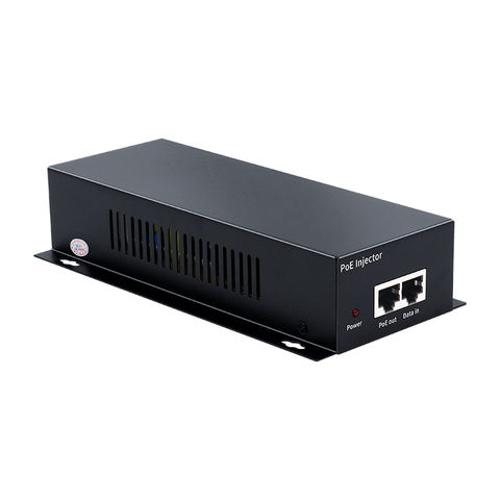

60W 90W Gigabit POE Injector IEEE 802.3af 802.3at 802.3bt 1000Mbps Plug&Play PoE for IP Camera,VoIP Phone,Wireless AP,100V-240V
Short Description:
| Port | 1* Gigabit POE Port+1* Gigabit Ethernet Port |
| POE Specification | PoE Standard: Support IEEE802.3af/ IEEE802.3at/ IEEE802.3bt Single Port Max: 15.4W (IEEE 802.3af)Single Port Max: 30W (IEEE 802.3at)Single Port Max: 90W (IEEE 802.3bt) POE Port Output Voltage: DC 52V POE Power supply wire core: 1/2-; 3/6+ Or 4/5+; 7/8- |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m)100Base-TX: Cat5 or above UTP(≤200m)1000Base-TX: Cat5 or above UTP(≤200m) |
| Indicator | PWR On: Powered onOff: Powered off |
| Power | Input Voltage: AC 100-240VWorking Frequency:50/60 HzSupply Power: 52V/1.73A |
| Working Environment | Working Temperature: -20~50℃Storage Temperature: -40~ 85℃Humidity: 5%~95 % (non-condensing) |
| Industry Standard | EN61000-4-2 (ESD)IEN61000-4-5 (Surge)EN61000-4-3 (RS)EN61000-4-6 (CS)EN61000-4-4 (EFT) |
| Physical Structure | Protection Grade:IP20Install: Wall MountingProduct N.W: 0.486KGProduct G.W: 0.712KGProduct Size (L*W*H): 187mm* 95mm*40 mmPackage Size (L*W*H): 245mm*190mm*60mmCarton size (L*W*H): 520mm*320mm*400mmPacking Qty: 20 unitsPacking weight: 15.24KG |
| Package List | 1. 60W Gigabit POE Injector: 1 PCS2. Manual: 1PCS3. Certificate, warranty card:1PCS |
| Safety Certification | CE, FCC, RoHS |
| MTBF | 100,000 Hours |
