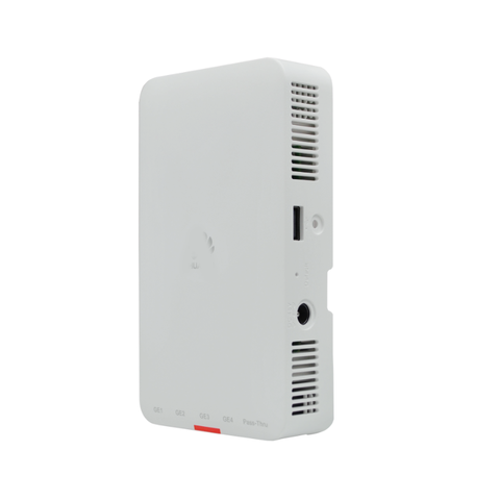

AP2051DN-E AP2000 Series enterprise wireless access points
Short Description:
| Specifications | AP2051DN and AP2051DN-E |
| Dimensions (H x W x D) | 32.5 mm x 86 mm x 150 mm |
| Power Input | DC: 45.6V to 57V |
| PoE power supply: In compliance with IEEE 802.3af/at | |
| Maximum Power Consumption | AP2051DN: 11.5W (excluding the output power of the USB port) AP2051DN-E: 11.5W (excluding the output power of the USB port and PoE_OUT port) |
| Note: The actual maximum power consumption depends on local laws and regulations | |
| Interface types | Uplink: 1 x GE |
| Downlink: 4 x GE | |
| 2 x Pass-through RJ45 port | |
| 1 x USB port (supported by the AP2051DN-E) | |
| Built-in Bluetooth | BLE4.1 (supported by the AP2051DN-E) |
| PoE OUT | Supported by AP2051DN-E: Maximum 13.6W (802.3at-compliant, 48V DC, supported only by GE4) |
| Operating Temperature | 0°C to 40°C |
| Antenna Type | Built-in smart antennas |
| Maximum Number of Users | ≤ 256 |
| Maximum Transmit Power | 2.4G: 23 dBm (combined power) |
| 5G: 23 dBm (combined power) | |
| Note: The actual transmit power depends on local laws and regulations. | |
| MIMO: Spatial Streams | 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave 2 |
| Maximum Rate | 1.267 Gbit/s |
