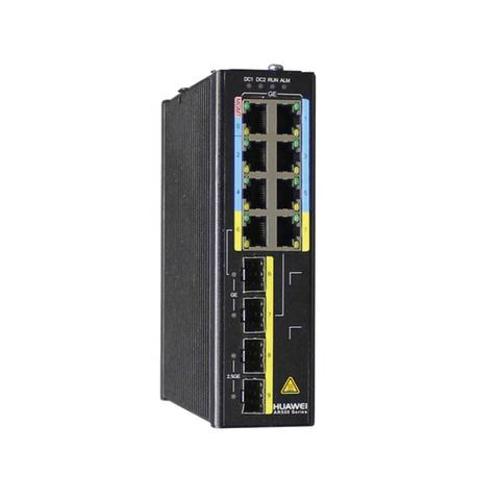

Huawei AR550 Series AR550C-2C6GE Agile Gateway Router
Short Description:
| Specifications | |
| AR550C-4GE | |
| AR550C-2C6GE | |
| AR550-8FE-D-H | AR550-24FE-D-H |
| Fixed Ethernet Interfaces | |
| 2 x 2.5G SFP (compatible with GE), 4 x GE RJ45 | |
| 2 x 2.5G SFP (compatible with GE), 2 x GE combo, 6 x GE RJ45 | |
| 8 x FE RJ45 + 4 x GE Combo | 24 x FE RJ45 + 4 x GE Combo |
| Forwarding Performance | |
| 13.5 Mpps | |
| 19.5 Mpps | |
| 7.2 Mpps | 9.6 Mpps |
| Switching Capacity | |
| 54 Gbit/s | |
| 54 Gbit/s | |
| 24.8 Gbit/s | |
| 24.8 Gbit/s | |
| Certifications | CB (IEC 60950) NRTL (UL60950-1) EU CE (EN 55022, EN 55024, and EN 300386) USA FCC (47CFR Part 15) Canada IC (ICES-003) Australia C-Tick (AS/NZS CIPSR22) Electric power IEC61850-3/IEEE1613 (substation) EN50155 (railway) |
| Ring Network Protocols | SEP, STP, RSTP, and MSTP |
| Power Supply | Dual DC power: 9.6V to 60V (terminal block) |
| IP Grade | IP40 |
| Operating Temperature | |
| –40°C to 70°C The device is tested for 2 hours at temperatures in the range of 70°C to 85°C | –40°C to 70°C |
| Dimensions (H x W x D) | |
| 44 mm x 133 mm x 150 mm | |
| 44 mm x 133 mm x 150 mm | |
| 97 mm x 133 mm x 150 mm | 133 mm x 133 mm x 150 mm |
