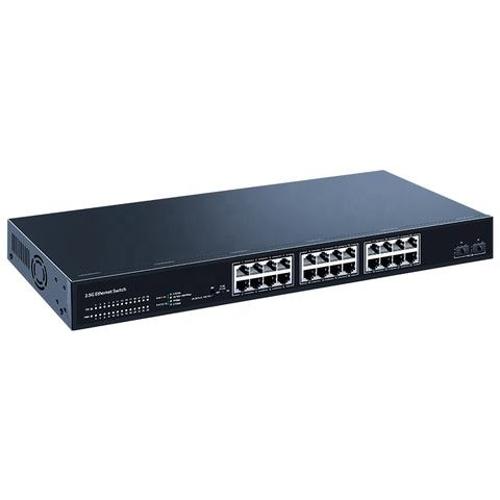

2.5G Network Switch,24 x 2.5G RJ45 Base-t Port 160G Bandwidth,Plug and Play Unmanaged 10G SFP+ Slot Network Switch
Short Description:
| I/O Interface | AC 100-240V |
| Ethernet Port | 24 * 2.5G RJ45 Port+2 * 10G SFP+ Slot |
| Chip | RTL9302D+RTL8224 |
| Exchange capacity | 160Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| MAC Address | 16K |
| Jumbo frame | 15Kbyte |
| MTBF | 100,000 hour |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz (5G Ethernet)IEEE 802.3z (Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control) |
| Industry standards | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),IEN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX : Cat5 or above UTP/STP(≤100m)1000Base-TX : Cat5 or above UTP/STP(≤100m)2.5GBase-T: Cat5e or above UTP/STP(≤100m)5GBase-T: Cat6 or above UTP/STP(≤100m)10GBase-T: Cat6a or above UTP/STP(≤100m) |
| Safety certification | CE, FCC, RoHS |
| Working environment | Working temperature: - 10~50 ° CStorage temperature: - 40~70 ° CWorking humidity: 10%~90%, non condensingStorage humidity: 5%~95%, non condensing |
| Power light | PWR(Power indication) |
| PWR (Power light) | On: Powered onOff: Powered off |
| Port LED light (green) (1-24 Port) | On: 2.5G link connection is normalFlashing: Data transmission is normalOff: Link not working |
| Port LED (yellow) (1-24 Port) | On: 100/1000M link connection is normalFlashing: Data transmission is normalOff: Link not working |
| 25-26 Port(Green) | ON: 10G link connection is normal OFF: Link is not working Flashing: Data transmission |
| Supply voltage | Working voltage: AC100-240 VPower supply: 12V 4A |
| Power comsumption | ≤36W |
| Packing list | 1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ear |
