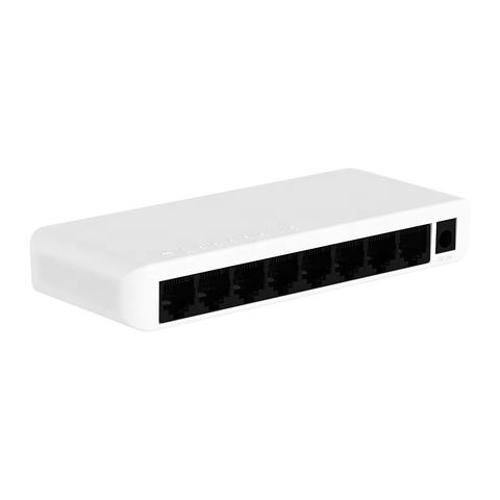

8 Port Gigabit Ethernet Switch,Smart 1000Base-T Network Fast Switcher 1000M Hub Internet Splitter for Camera Surveillance
Short Description:
| Power | DC 5V |
| Ethernet | 8*Gigabit RJ45 Ports |
| Main Chip | EN8850DHE |
| Material | Plastic |
| Switching Capacity | 16Gbps |
| Throughput | 11.90Mpps |
| Package cache | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 16Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3x (Flow control) |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or aboveUTP(≤100m) |
| Safety certificate | CE,FCC,RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-20~70°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~95%,non-condensing |
| LED Indicators | PWR(Power indicator),Link(Network Link) |
| PWR | On: power onOff: no power |
| Link | On: 10/100/1000M link connection is normalBlinking: Data transmission is normalOff: link failure |
| Structure Size | Product Size:145*60*21.5mmPacking Size:146*88*50mmProduct Weight:0.111KgPacking Weight:0.166Kg |
| Packing Info | Outer box size: 530*475*315mmPacking quantity: 100 PCSPacking weight: 17.6KG |
| Operating Voltage | Power interface: DC2.1voltage: Certified power supply DC 5V1A/Non certified power supply DC 5V2A |
| Total power | <5W |
| Packing list | 1. Switch:1 PCS2. User manual :1PCS3. Warranty :1 PCS4. PowerAdapter :1 PCS |
