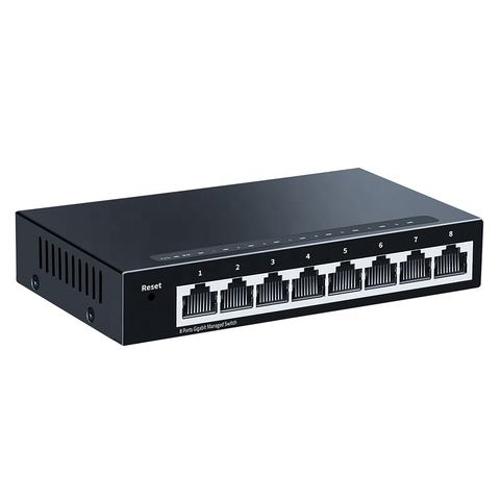

8 Port Gigabit Ethernet Switch Managed 1000Mbps Smart Network Switcher with Web Management/802.3Q/VLAN/QOS/SNMP DC 5V 1A
Short Description:
| Power | DC 5V |
| Ethernet | 8*Gigabit RJ 45 ports |
| Bandwidth | 16Gbps |
| Packet Forwarding rate | 11.9Mpps |
| Packet Buffer | 12Kbit |
| MAC Address | 8K |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 31 |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3: 10Base-TIEEE802.3u :100Base-TXIEEE802.3ab: 1000Base-TXIEEE 802.3x:Flow control |
| Industry Standard | EMS: EN61000-4-2 (ESD),EN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or above UTP(≤100m) |
| Security Certificate | CE,FCC,RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-40~70°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~95%,non-condensing |
| LED Indicators | PWR,SYS,Link,ACT |
| Structure Size | Product Size: 137*77*25 mmPackage Size: 175*120*63 mmProduct Net-Weight:0.27KGProduct Gross-Weight:0.40KG |
| Packing Info | MEAS: 520*320*400 mmPacking Qty:40PCSPacking weight:17.2KG |
| Power Voltage | Power Input Voltage: AC 100-240 VPower Output: 5V1A |
| power | Maximum 5W |
| Package List | Ethernet switch: 1 Set,Instruction manual: 1 PCS,Power adapter: 1 PCS |
| L2 Function | |
| Port | Port SwitchPort DescriptionPort SpeedPort DuplexPort Flow ControlJumbo, Up to 9216bytesEEEGreen Ethernet |
| Link Aggregation | Static GroupUp to 2 groupsMax. 4 members per group |
| Storm Control | BoardcastUnknown MulticastUnknown Unicast |
| Port Mirroring | |
| Port Security | MAC Address Constraints |
| Port IsolationPort Rate-limitLoopback Detection | |
| VLAN | Access/Trunk/HybridCongurable VID from 1 - 4094;Max. 31 static VLAN groups |
| MAC Address | Dynamic Address Static AddressAddress Lookup |
| Spnning Tree Protocol | STP/RSTP/MSTPEdge Port |
| Multicast | IGMP SnnopingIGMP V1/V2Router PortStatic IGMP Join |
| QoS | Traffic classification based, Strict priority and WRRPort Priority802.1P PriorityIP DSCP PrioritySupports up to 4 queues per port |
| Access Protocol | HTTP |
| DiagnosticsPort StatisticsCopper TestManagemnet | |
| Manager Access | HTTPSNMP |
| Manager IP | Static AddressDHCP Client |
| SNMP | V2CCommunityTrap Host |
| SNMP MIB | RFC 1213 MIB-II |
| User | |
| Firmware | Firmware Upgarde |
| Configuration | Upload and download |
| SaveRestartFactory Defaults | |
| Standards Compliance | |
| IEEE 802.3x flow control and back pressureIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingRFC 768 UDPRFC 791 IPRFC 792 ICMPRFC 2068 HTTP RFC 1112 IGMP v1RFC 2236 IGMP v2 |
