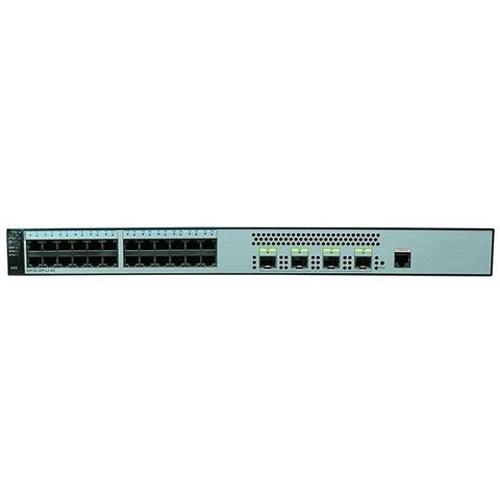

Switch S5720-28P-LI-AC 10G Ethernet Switch
Short Description:
| DDR memory | 256 MB |
| Flash memory | V200R001: 64 MB V200R002 and later versions: 200 MB |
| Mean time between failures (MTBF) | S5700S-28P-LI-AC: 49.69 years S5700S-52P-LI-AC: 39.26 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Surge protection | |
| Service port protection | Common mode: ±6 kV |
| Power supply protection | ±6 kV in differential mode; ±6 kV in common mode |
| Dimensions (W x D x H) | S5700S-28P-LI-AC: 442.0 mm x 220.0 mm x 43.6 mm S5700S-52P-LI-AC: 442.0 mm x 310.0 mm x 43.6 mm |
| Weight | ≤ 5 kg |
| Stack port | Not supported |
| RPS | Supported |
| PoE | Not supported |
| Input AC voltage | |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | S5700S-28P-LI-AC: 24 W S5700S-52P-LI-AC: 48.4 W |
| Temperature | |
| Operating temperature | 0°C to +50°C (at 0 m to 1800 m altitude) NOTE: When the altitude is between 1800 m and 5000 m, the highest operating temperature reduces 1°C every time the altitude increases 220 m. |
| Storage temperature | -40°C to +70°C |
