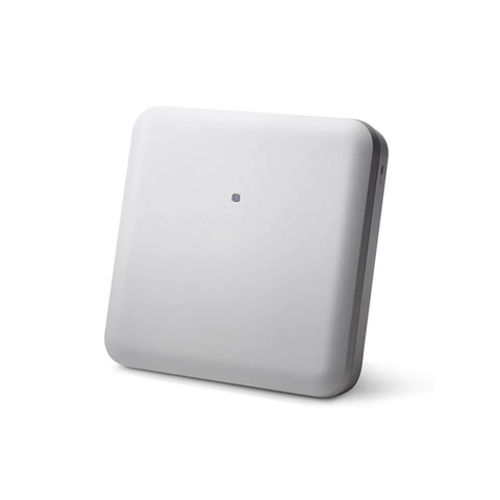

Original AIR-AP1832I-A-K9 802.11ac Wave 2 AP 1832i Wireless Access Point
Short Description:
| Product Description | Aironet 1832I - Drahtlose Basisstation - 802.11ac (draft 5.0) |
| Antenna | Internal |
| Directivity | Omni-directional |
| Gain Level | 5 dB |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 2.0 - Type A General |
| Depth | 21.08 cm |
| Device Type | Radio access point |
| Height | 50.8 cm |
| Ruggedized Design | Indoor |
| Weight | 1.41 kg |
| Width | 21.08 cm |
| Compliant Standards | VCCI, ICES-003, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109,ARIB STD-T66, ARIB STD-T71, EMI, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, CAN/CSA-C22.2 No. 60950-1 |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2 |
| Features | DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), 3T3R MIMO technology, 802.1x authentication, cyclicshift diversity (CSD), beamforming technology |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 5.0) |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Port status, Boot State, error, status |
| Power Consumption Operational | 16 Watt |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Flash Memory | 256 MB |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| RAM | 1 GB |
