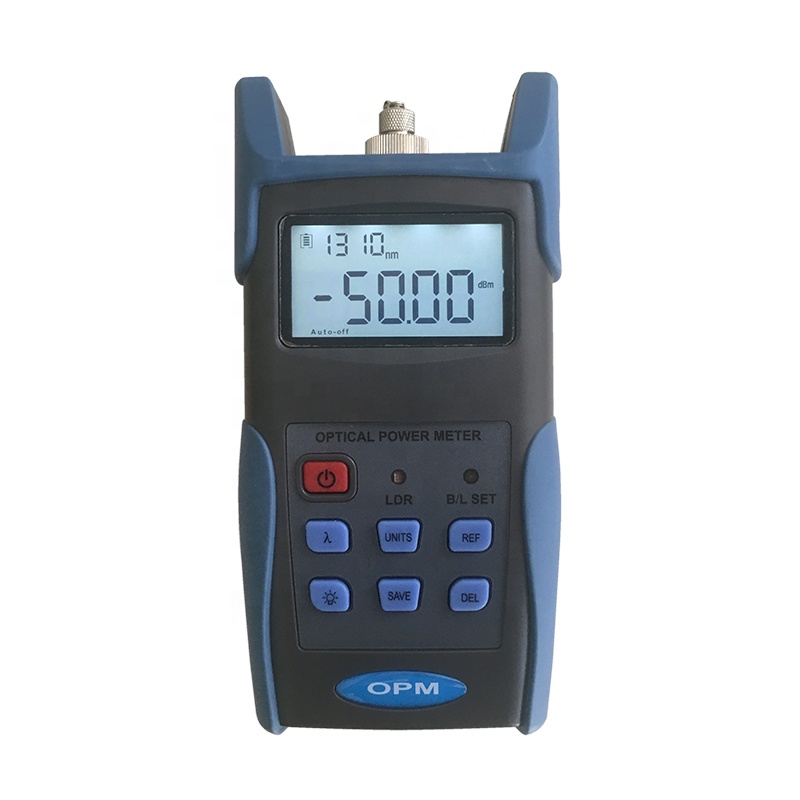

Handheld SM MM Automatic Wavelength Identification and Switching Fiber Optical magene Power Meters
Short Description:
| Model | |
| A | C |
| Calibration Wavelength（nm） | |
| 850/1300/1310/1490/1550/1625 | |
| Detector type | |
| InGaAs | |
| Measurement Range（dBm） | |
| -70～+6 | -50～+26 |
| Uncertainty (dB) | |
| ±0.15（3.5%） | |
| linearity (dB) | |
| ±0.02 | |
| Display resolution(dB) | |
| 0.01 | |
| Frequency ID（Hz） | |
| 270，330，1K，2K | |
| Wave ID（nm） | |
| 850,1300, 1310，1490，1550，1625 | |
| Date Storage Capacity | |
| 1000 | |
| Communication Port | |
| USB | |
| Standard Connector | |
| FC /2.5mm universal | |
| Optional Optical Connector | |
| FC/SC/ST Interchangeable/2.5mm universal | |
| Optional Optical Connector | |
| LC/FC/SC/ST Interchangeable | |
| Alkaline battery | |
| 3*AA，1.5V | |
| Power Adapter(V) | |
| 8.4 | |
| Battery Operating time (h) | |
| 200 without backlight | |
| Operation Temperature(℃) | |
| -10～+60 | |
| Storage Temperature(℃) | |
| -25～+70 | |
| Dimension(mm) | |
| 175*90*44.5 | |
| Weight(g) | |
| 231 |
