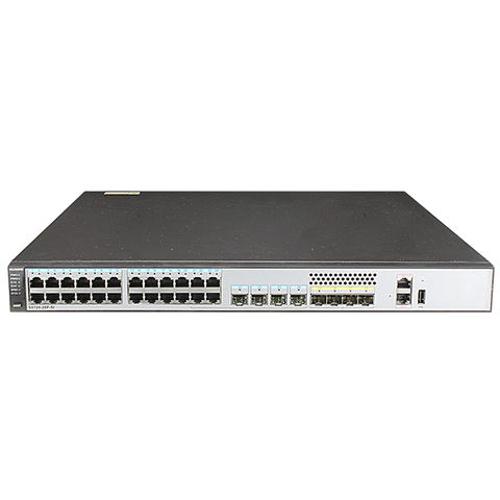

Flexible Huawei S5720-28P-SI-AC High-density 24 ports Fiber Switch
Short Description:
| Item | |
| S5720-32P-EI-AC | |
| S5720-52P-EI-AC | S5720-36C-EI-AC S5720-36C-PWR-EI-AC S5720-36PC-EI-AC S5720-36C-EI-28S-AC |
| Fixed ports | |
| 24x10/100/1000Base-T, 4x 100/1000Base-X SFP, 4 Gig SFP | |
| 48×10/100/1000Base-T, 4 Gig SFP | S5720-36C-EI-AC/ S5720-36C-PWR-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4×10 Gig SFP+ S5720-36C-EI-28S-AC: 28×100/1000Base-X SFP(4GE Combo), 4×10 Gig SFP+ S5720-36PC-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4 Gig SFP |
| Extended slot | |
| NA | One extended slot that supports an uplink interface card or private stack card |
| DRAM and Flash | SDRAM: 2 GB Flash : 340 MB |
| MAC address table | IEEE 802.1d 64K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping VLAN-based transparent transmission of protocol packets |
| Jumbo frame | 12K |
| IP routing | Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing |
| IPv6 features | Neighbor Discovery (ND) Path maximum transmission unit (PMTU) IPv6 Ping, IPv6 Tracert, and IPv6 Telnet 6 to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery (MLD) v1/v2 snooping |
| QoS/ACL | Inbound and outbound traffic rate limiting on a port Packet redirection Broadcast storm control Port-based traffic policing and two-rate and three-color CAR Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms Weighted random early detection (WRED) Re-marking of the 802.1p priority and DSCP value of packets Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs Per queue rate limiting and interface traffic shaping 1:1,N:1,N:4 port mirroring VLAN mirroring |
| Security features | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and the limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist MACSec ready |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client |
| Operating environment | Operating temperature: 0-1800m altitude: 0-45°C 1800-5000m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. Relative humidity: 5% to 95% (noncondensing) |
| Input voltage | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V DC Maximum voltage range: –36 V to –72 V DC |
| Dimensions (W x D x H, mm) | |
| 442×220×43.6 | 442×420×43.6 |
