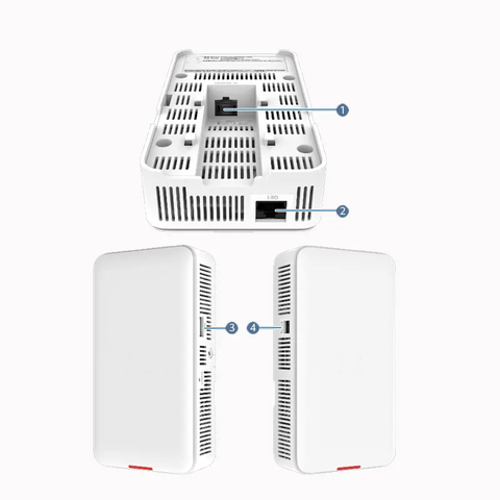

AP263 (11ax indoor type,2+2 dual frequency, Smart Antenna,USB, Bluetooth) 50084981
Short Description:
| project | description |
| Installation mode | desktop |
| Wall hanging | |
| Suction cap | |
| Bottom box | |
| Size (W x D x H, excluding packing material) [mm] | 86mm x 38 mm x 160mm |
| Size (W x D x H, including packing material) [mm] | 115mm x 75 mm x 205mm |
| Weight (excluding packing material) [kg] | 0.320 kg |
| Weight (including packing material) [kg] | 0.542 kg |
| storage | NAND FLASH 256MB |
| Console port type | Bluetooth serial port |
| Maximum power consumption [W] | 12W |
| Maximum heat dissipation value [BTU/hour] | 41BTU/hour |
| Power supply system | DC adapter |
| PoE | |
| Rated input voltage [V] | 12V |
| Input voltage range [V] | 12 + / - 10% |
| PoE: 802.3af (excluding USB) | |
| Service port lightning protection [kV] | PoE port: |
| Differential mode (48V-RTN) 0.5kV (1.2/50us, 42ohm) B criterion; | |
| Common mode (8 wire to ground) 6kV (1.2/50us, 42ohm) B criterion. | |
| Maximum number of physical ports | GE (RJ45) x 2,10M/100M/1000Mbit/s auto-adapt |
| Long-term operating environment temperature [°C] | 0°C to 40°C (between 1800m and 5000m, the high temperature operating temperature specification decreases by 1°C for each increaseof 300m) |
| Storage temperature [°C] | -40°C to 70°C |
| Long-term working environment relative humidity | 5% RH to 95% RH |
| Long-term working altitude [m] | -60m to 5000m |
| Barometric environment | 53kPa - 106kPa ETSI 300 019-2-3 |
| ground | floating |
| USB interface | USB2.0(Support 5W power supply) |
| Bluetooth BLE | BLE5.0 |
| Rf number | 2 |
| Operating frequency band | 2.4 GHz |
| 5GHz | |
| MIMO space flow | Rf 0(2.4G) : 2x2 |
| Rf 1(5G) : 2x2 | |
| Wi-Fi standard | 2.4 G: 802.11 b/G/n/ax |
| 5G:802.11a/n/ac/ac wave2/ax | |
| Rf interface | Built-in smart antenna |
