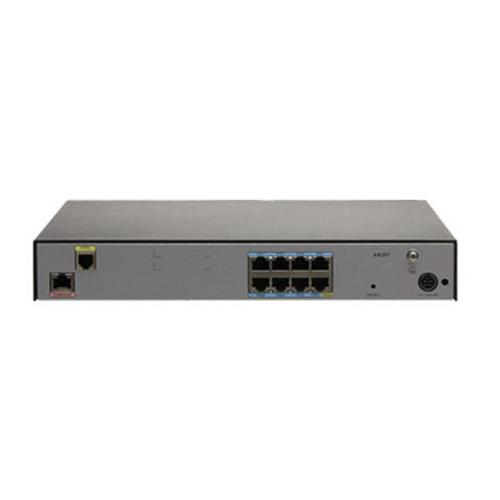

Huawei AR207V wireless router fxo fxs enterprise 3G routers
Short Description:
| WAN Speed with Services (IMIX) | |
| 150 Mbit/s | |
| 150 Mbit/s | |
| 150 Mbit/s or 100 Mbit/s | 150 Mbit/s or 100 Mbit/s |
| Fixed WAN Ports | |
| 1 x ADSL2+ Annex A/M, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) | |
| 1 x ADSL2+ Annex A/M, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) | |
| 1 x ADSL2+ Annex A/M, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) | 1 x G.SHDSL 8-wire, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) |
| Fixed Ethernet Switching Ports | |
| 8 x FE | |
| 8 x FE | |
| 8 x FE/4 x FE | 8 x FE/4 x FE |
| Fixed Voice Ports | |
| 4 x FXS, 1 x FXO | |
| 4 x FXS, 1 x FXO | |
| - | - |
| Integrated 3G | |
| - | |
| - | |
| WCDMA HSPA+7 | - |
| USB 2.0 Ports | |
| 1 | |
| 1 | |
| 1 | 1 |
| Serial Auxiliary/Console Ports | |
| 1 | |
| 1 | |
| 1 | 1 |
| Memory Size | |
| 512 MB | |
| 512 MB | |
| 512 MB | 512 MB |
| Flash Memory | |
| 512 MB | |
| 512 MB | |
| 512 MB | 512 MB |
| PoE Power | |
| - | |
| External 100 | |
| - | - |
| Maximum Power | |
| 60W | |
| 60W | |
| 36W/24W | 36W/24W |
| Power Supply (AC) | |
| 100V to 240V | |
| 100V to 240V | |
| 100V to 240V | 100V to 240V |
| Frequency | |
| 50/60 Hz | |
| 50/60 Hz | |
| 50/60 Hz | 50/60 Hz |
| Dimensions (H x W x D) | |
| 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) | |
| 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) | |
| 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) | 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) |
| Operating tTemperature | |
| 32oF to 113oF (0oC to 45°C) | |
| 32oF to 113oF (0oC to 45°C) | |
| 32oF to 113oF (0oC to 45°C) | 32oF to 113oF (0oC to 45°C) |
| Relative Humidity | |
| 5% to 95% (non- condensing) | |
| 5% to 95% (non- condensing) | |
| 5% to 95% (non- condensing) | 5% to 95% (non- condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features) |
| WLAN (AP) | AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN |
| QoS | DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ),MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3), RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI |
