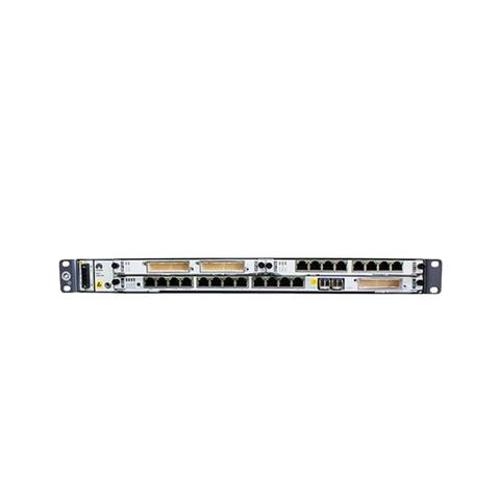

Huawei OSN 500 Optical Transmitter Receiver SDH STM-1
Short Description:
| Dimensions | 44 mm x 442 mm x 220 mm (H x W x D) |
| Weight | 2 kg (net weight of a chassis that contains one fan board and one PIU board) |
| Power consumption | Maximum power consumption: 75 W Typical power consumption: 35 W Board configuration for typical power consumption: 1 x CSHD + 1 x FAN + 1 x PIU. |
| Heat consumption | Maximum heat consumption: 256 BTU/h Typical heat consumption: 120 BTU/h |
| Power supply performance | Power supply mode: DC Rated voltage: -48 V or -60 V Voltage range: -38.4 V to -72 V |
| Fuse capacity | 10 A |
| Electromagnetic compatibility | Complies with EMC Class A. |
| Predicted reliability | System availability: 0.9999976 Annual average repair rate: < 1.5% Mean time to repair (MTTR): 2 hours Mean time between failures (MTBF): 94.50 years |
