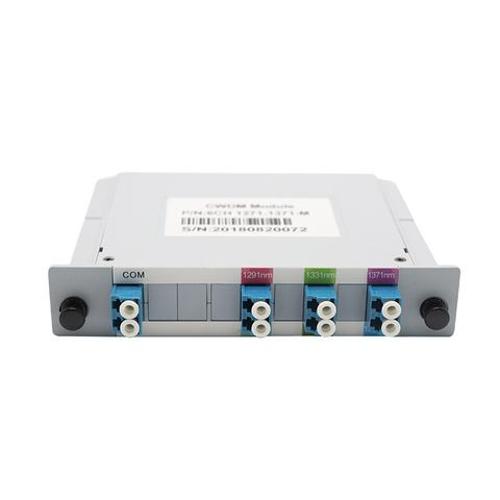

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM
Short Description:
| Channel Space | |
| 20NM | |
| Channels Number | |
| 2 | |
| 4 | |
| 8 | 16 |
| Central Wavelength | |
| 1271-1611NM | |
| Operating Wavelength | |
| 1260-1460 or 1460-1620 or1260-1620NM | |
| Pass band | |
| λITU±6.5NM | |
| Pass band Flatness | |
| ≤0.5DB | |
| Insertion Loss (Typ.) | |
| 0.8 | |
| 1.3 | |
| 2.4 | 4.6 |
| Insertion Loss (Max.) | |
| 0.9 | |
| 1.5 | |
| 2.8 | 5.0 |
| Adjacent Channel Isolation | |
| ≥30 | |
| Non-adjacent Channel Isolation | |
| ≥40 | |
| Polarization Mode Dispersion | |
| ≤0.1 | |
| ≤0.1 | |
| ≤0.15 | ≤0.15 |
| Polarization Dependent Loss | |
| ≤0.1 | |
| ≤0.15 | |
| ≤0.2 | ≤0.25 |
| Return Loss | |
| ≥50 | |
| Directivity | |
| ≥50 | |
| Insertion Loss Temperature Sensitivity | |
| 0.005 | |
| 0.005 | |
| 0.007 | 0.007 |
| Wavelength Temperature Shifting | |
| 0.002 | |
| Operation Temperature | |
| -10 - +70 | |
| Storage Temperature | |
| -40 - +85 | |
| Package Dimension | |
| ABS box : 100x80x10mm or customize NM | |
