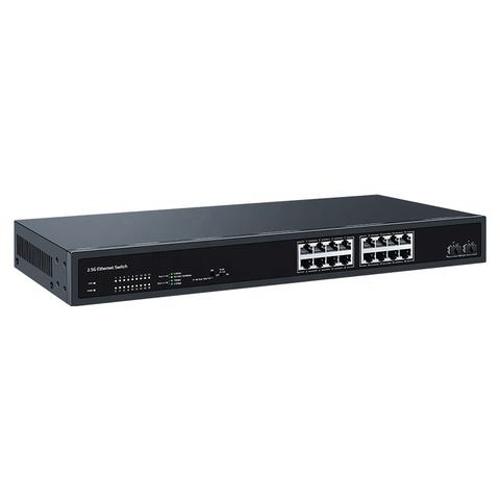

2.5G Network Switch,16 x 2.5G RJ45 Base-t Port, 2 x 10G SFP+ Slot 120G Bandwidth,Plug&Play Unmanaged Home Lab Network Switch
Short Description:
| I/O Interface | AC 100-240V |
| Ethernet Port | 16 * 2.5G RJ45 Port+2 * 10G SFP+ Slot |
| Chip | RTL9302D+RTL8224 |
| Exchange capacity | 120Gbps |
| Packet Forwarding Rate | 89.28Mpps |
| MAC Address | 16K |
| MTBF | 100,000 hour |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz(5G Ethernet)IEEE 802.3z(Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control) |
| Industry standards | EMS: EN61000-4-2 (ESD)EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or above UTP/STP(≤100m)1000Base-TX: Cat5 or above UTP/STP(≤100m)2.5GBase-T: Cat5 or above UTP/STP(≤100m)5GBase-T: Cat6 or above UTP/STP(≤100m)10GBase-T: Cat6 or above UTP/STP(≤100m) |
| Optical Fiber Medium | 1000BASE-SX: 62.5μm MMF(Multi mode optical fiber)(Minimum range:2m~275m) or 50μm MMF1000BASE-LX: 62.5 μ m/50 μ m MMF(Minimum range:2m ~ 550m) or 0 μ mSMF(Minimum range:2m~5km)2500BASE-X: G.652D SMF(Single-mode optical fiber)(Minimum range:2m ~500m or 2m~5Km)10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range:2m~300m)10GBASE-LR: IEC and B1.1 and B1.3 SMF(Minimum range:2m~10km) |
| Safety certification | CE, FCC, RoHS |
| Working environment | Working temperature: 0~40 ° CStorage temperature: - 40~70 ° CWorking humidity: 10%~90%, non condensingStorage humidity: 5%~95%, non condensing |
| Power light | PWR(Power indication) |
| PWR (Power light) | On: Powered onOff: Powered off |
| Port LED light (green) (1-16 Port) | On: 2.5G link connection is normalFlashing: Data transmission is normalOff: Link not working |
| Port LED (yellow) (1-16 Port) | On: 100/1000M link connection is normalFlashing: Data transmission is normalOff: Link not working |
| 17-18 Port(Green) | ON: 10G link connection is normal OFF: Link is not working Flashing: Data transmission |
| Supply voltage | Working voltage: AC100-240 VPower supply: 12V 4A |
| Power comsumption | ≤36W |
| Dialing | On: Vlan mode is enabled (ports 1-14 are isolated and communicate with ports15-18 of the uplink)Off: Vlan mode is off (all ports communicate with each other) |
| Packing list | 1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ear |
| Structural Dimension | Product size: 440*204*44.5mmPackage size: 500*290*85mmProduct weight: 2.21KGPacking weight: 2.72KG |
| Packing information | Outer box size: 520*445*310mmPacking quantity: 5 PCSPacking weight: 14.6KG |
