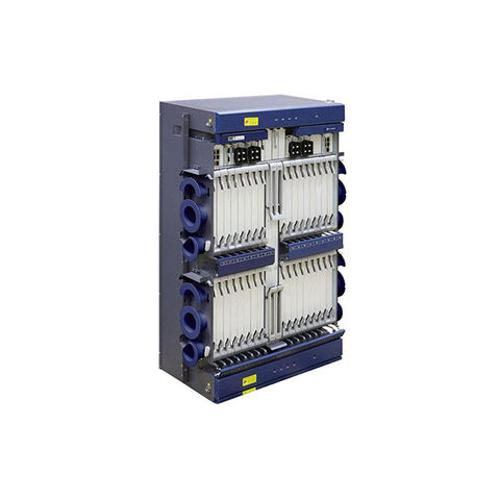

Huawei OSN 9800 ASON OTN Transmission System Network Equipment 100GE DWDM
Short Description:
| Specifications | |
| OptiX OSN 9800 U16 | |
| OptiX OSN 9800 U32 | OptiX OSN 9800 U64 |
| Dimensions (H x W x D) | |
| 847 mm x 442 mm x 295 mm | |
| 1,900 mm x 498 mm x 295 mm | 2,200 mm x 600 mm x 600 mm (with cabinet) |
| Number of Service Slots | |
| 14 | |
| 32 | 64 |
| Switching Capability | |
| 5.6 Tbit/s universal switching | |
| 12.8 Tbit/s universal switching | 25.6 Tbit/s universal switching |
| Channel Spacing | 50/100 GHz fixed grid for 40/80 wavelengths 37.5 GHz to 400 GHz flex grid |
| Rate per Channel (maximum) | 100 GE, 200 GE, 400 GE, 1 TE, 2 TE |
| Wavelength Range | DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1) |
| Power Supply | –48 V DC/–60 V DC |
