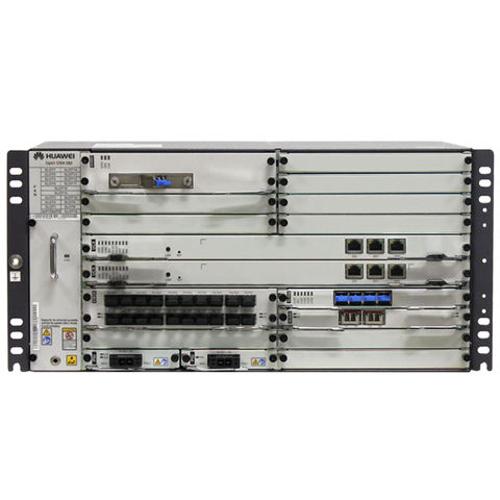

Huawei OSN 580 STM-4 SDH Transmission System
Short Description:
| Service | |
| Service Category | |
| Maximum Receiving Capability | Service Port |
| Description | Connector |
| SDH service | |
| 112xSTM-1 (optical port) 56xSTM-1 (electrical port) | |
| S-1.1, L-1.1, and L-1.2 optical ports STM-1 SFP electrical ports | Optical port: LC Electrical port: SAA straight female |
| 112xSTM-4 | |
| S-4.1, L-4.1, and L-4.2 optical ports | LC |
| 56xSTM-16 | |
| S-16.1, L-16.1, and L-16.2 optical ports | LC |
| 28xSTM-64 | |
| I-64.1, S-64.2b, I-64.1b, and P1L1-2D2 optical ports | LC |
| PDH service | |
| 168xE1/T1 | |
| E1 (75/120-ohm)/T1 (100-ohm) electrical ports | Anea 96 |
| 12xE3/T3 | |
| E3 (75-ohm)/T3 (75-ohm) electrical ports | SMB |
| Ethernet service: Ethernet private line (EPL) service Ethernet virtual private line (EVPL) service Ethernet private LAN (EPLAN) service (based on the IEEE 802.1d bridge) Ethernet virtual private LAN (EVPLAN) service (based on the IEEE 802.1q or IEEE 802.1ad bridge) | |
| 56xFE | |
| FE optical port: 100BASE-BX, 100BASE-FX, 100BASE-LX, 100BASE-VX, and 100BASE-ZX | LC |
| 56xGE | |
| GE optical port: 1000BASE-SX/LX/VX/ZX GE electrical port: 1000BASE-T | Optical port: LC Electrical port: RJ45 |
| TDM network-level protection | |
| SNCP | SNCP at the VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c levels Maximum number of protection groups: 1888 Switching duration: ≤ 50 ms |
| Ring MSP | Ring MSP at the STM-4, STM-16, and STM-64 levels Maximum number of protection groups: 56 Switching duration: ≤ 50 ms |
| Linear MSP | Linear MSP at the STM-1, STM-4, STM-16, and STM-64 levels Maximum number of 1+1/1:N (1≤N≤14) linear MSP protection groups: 56 Switching duration: ≤ 50 ms |
| Maintenance | |
| PRBS | Supported |
| Synchronization | |
| Physical layer clocks | Supports external clocks, line clocks, tributary clocks, and internal clocks. The port impedance is 120 ohms or 75 ohms (a converter can be used to provide a 75-ohm clock port). Supports non-SSM, standard SSM, and extended SSM protocols. Supports retiming of tributary clocks. Supports the locked, holdover, and free-run modes. |
