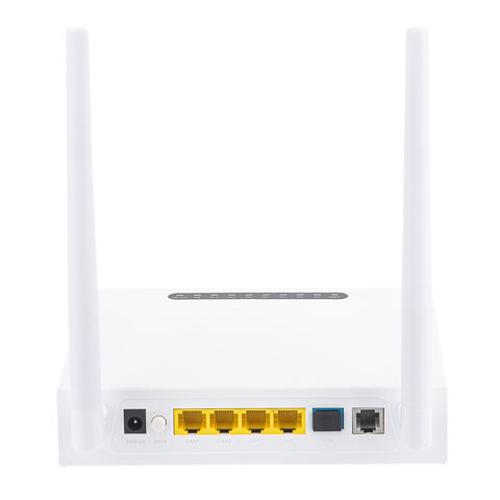

Manufacturer make WIFI ONU 1GE3FE+WIFI+POTs HGU 1000M XPON FPON ONU ONT
Short Description:
| Technical Item | Details |
| PON interface | 1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+4dBm Transmission distance: 20KM |
| LAN interface | 1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
| POTS Port | RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED | 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4, FXS |
| Push-Button | 3, for Function of Power on/off, Reset, WPS |
| Operating condition | Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
| Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
