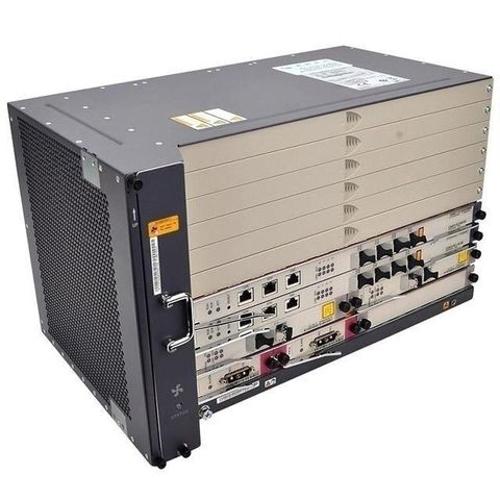

GPON OLT MA5683T GPBD GPFD
Short Description:
| Access features | 10G GPON /GPON access EPON access P2P access |
| MPLS | Basic MPLS functions MPLS RSVP-TE MPLS OAM Graceful restart (GR) function of the LDP, RSVP-TE, and PW As a provider *RSVP-TE FRR *PW 1:1 redundancy *VPLS |
| Broadband L2 features | MAC address management MAC address learning VLAN attribute management Service stream processing L2 forwarding policy Traffic classification VLAN switching policy *Bridging |
| QoS | Priority processing Traffic management ACL policy Congestion management *HQoS |
| Multicast | PIM-SSM IGMP snooping IGMP proxy Multicast VLAN management Multicast program management Multicast user management *Multicast CAC *VPLS Multicast |
| L2 tunnel emulation technology | *TDM PWE3 *ATM PWE3 *ETH PWE3 *Terminating the SAToP service and transmitting the service upstream through the STM-1/E1 port Terminating the native TDM service and transmitting the service upstream through the E1/STM-1 port |
| L3 features | VLAN L3 interface ARP ARP proxy DHCP relay DHCP Option60 Static routing RIP dynamic routing OSPF dynamic routing IS-IS dynamic routing BGP dynamic routing DHCP proxy ECMP VRF VRRP snooping |
| IPV6 | IPV6 basic feature IPV6 Qos IPv6 L2 forwarding BGP4+ |
| Security features | User security System security OAM security Line security |
| Network protection features | MSTP RRPP *Smart link and monitor link *Inter-board aggregation Ethernet link aggregation (through the LACP protocol) BFD *STM-1 protection switching *GPON Type C & Type C dual-homing protection switching Redundancy protection |
| OAM features | Remote operation and user management Version and data management Device abnormality management *Service overload control ETH OAM( * SupportY.1731) RING check ANCP |
| Clock features | BITS access clock synchronization Synchronous Ethernet clock System internal clock Network time synchronization Line recovered clock (E1/STM-1/SAToP) |
| Control board redundancy | Load-balancing mode Active/Standby mode |
| System energy conservation | Energy conservation control Energy consumption monitoring |
