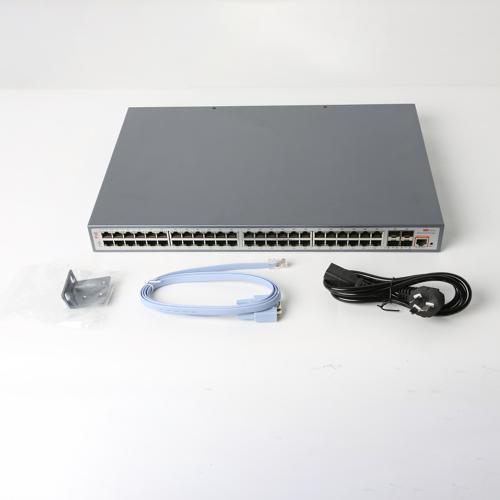

48 ports PoE Switch L3 48+4 POE Switch 48*1000M RJ45 ports and 4*10G SFP+ poe switch
Short Description:
| Parameter | Specificaiton |
| Interface | 48*10/100/1000Base-T PoE ports (Data/Power)4*1/10G uplink SFP+ fiber slot ports (Data)1*Console RS232 port (115200,N,8,1) |
| Managed type | L3 |
| POE port | Port 1-48 can support IEEE 802.3af/at PoE standard |
| Network Protocol | IEEE802.3 10Base-T;IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR; IEEE802.3x |
| PoE Standard | IEEE802.3af/at standard |
| Ethernet Port Feature | Port 1-48 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Gigabit SFP port and 10G SFP+ port (Fiber module is not included, need to order separately, module options include single/multimode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 598Gbps (non-blocking) |
| Forwarding Rate@64byte | 131Mpps |
| MAC | 32K |
| Buffer Memory | 32M |
| Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) ;100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat6 or later UTP(≤100 meter) |
| Optical Fiber Cable | Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. |
| Power Supply Pin | Default: 1/2(+),3/6(-) |
| Max / Average Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | 600W (AC100-240V) |
| Power Consumption | Standby<35W;Full Load<600W |
| LED Indicator | Power indicator:PWR(yellow); system indicator:SYS(yellow); Network indicator;Link/Act (yellow); PoE indicator: PoE (green); SFP fiber port :L/A(green) |
| Reset Button | Support one key to restore factory settings |
| Power Supply | Built-in switching power supply, AC 100~240V 50-60Hz 6.6A |
| Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP /Humidity | -40~+80°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 440*289*44mm |
| Net /Gross Weight | <4.8kg / <5.5kg |
| Installation Method | desktop type ,19 inch 1U cabinet installation |
| Lightning protection / Protection Level | Lightning protection :4KV 8/20us;Protection Level:IP30 |
| Managed Series Feature | |
| Interface | IEEE802.3x flow control (full duplex)Broadcast storm suppression for port ratesupport speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps.Temperature protection settingEnergy saving configuration of port EEE Ethernet |
| PoE Management | Total power limit of PoE power supplyPoE output power allocation per port, close /af/atPoE output priority configuration for each portPoE working state display per portPower delay startPoE work and time scheduling |
| Layer 3 Function | Support L3 managed functionSupport IPV4/IPV6 managementSupport layer 3 of software line speed forwarding.Support different network segments, communication between different VLANStatic routing/default routing,128 maximum entriesARP protocol, 1024 maximum entries |
| VLAN | Support port based VLAN (4K), IEEE802.1qSupport protocol based VLANSupport Access, Trunk, Hybrid three types of port configurationSupport QinQ configuration |
| Port Aggregation | Support LACPSupport static polymerizationSupport the largest 8 aggregation groups, each aggregation group supports 8 ports. |
| Spanning Tree | STP (IEEE802.1d) RSTP (IEEE802.1w) MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring.The self healing time of the ring network is less than 20ms |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most.Support the user's quick departure mechanismSupport MLD Snooping V1/V2Support multicast VLAN |
| Image | Bi-directional traffic mirroring supporting the basic port |
| QoS | Diff-Serv QoSEach port supports 8 output queuesSupport 802.1p/DSCP priority mappingSupport queue scheduling mechanism (SP, WRR, SP+WRR)priority tag Mark/Remarkstream based packet filteringSupport for stream based redirectionSupport flow based speed limit |
| ACL | Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address,destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN andother definition ACL.Support ACL based on port and VLAN |
| Safety Characteristics | Support user grading management and password protectionSupport IEEE802.1X authentication / centralized MAC address authenticationSupport AAA&RADIUS authenticationSupport the number of MAC address learning restrictionsSupport MAC address black holeSupport SSH 2 to provide secure passwords for user login.Support SSL to ensure data transmission securitySupport port isolationSupport the speed limit function of ARP messageSupport IP source address protectionSupport ARP intrusion detection functionSupport against DoS attacksSupport port broadcast message suppressionSupport host data backup mechanismBinding capabilities of IP+MAC+VLAN+ ports |
| DHCP | Support DHCP Client Support DHCP SnoopingSuport DHCP Serve Suport DHCP Relay |
| Management And Maintenance | Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configurationSupport WEB network management (HTTPS)Support FTP, TFTP, Xmodem, SFTP file download managementSupport SNMP V1/V2C/V3Support one bond reductionSupport NTP clockSupport system work logSupport Ping detectionSupport cable state detectionSupport CPU instant utilization status viewSupport link layer discovery protocol LLDPSupport NMS intelligent management center |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;Cat5e or later Ethernet cable;TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on on every computer in thenetwork. |
