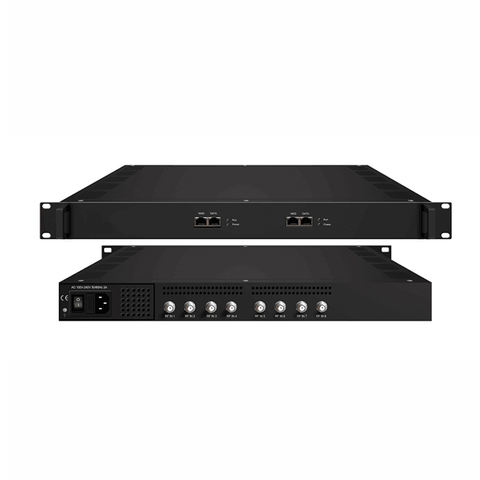

5 MPTS out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast DVB-S/S2/S2X Receiver
Short Description:
| Item | |
| Specification | |
| Input / Output | |
| 4 Tuner input, F Type5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast | |
| Mux | |
| Max number of managing PID: 256 (for 1 MPTS out thru multiplexing) | |
| Functions | |
| PID remapping (automatically/ manually) | |
| PID pass-through | |
| Tuner Section | |
| DVB-S | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol Rate | |
| 0.5~45 Msps | |
| Constellation | |
| QPSK | |
| FEC | |
| 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-S2 | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol Rate | |
| QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps | |
| Constellation | |
| QPSK/8PSK/16APSK/32APSK | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9 | |
| Max input bitrate per tuner | |
| ≤170 Mbps | |
| DVB-S2X | |
| Symbol Rate | |
| QPSK/8PSK/16APSK: 0.5~45 Msps;8APSK/32APSK: 0.5~40 Msps | |
| Constellation | |
| QPSK/8PSK/16APSK/8APSK/32APSK | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/188APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 | |
| Max input bitrate per tuner | |
| ≤170 Mbps | |
| Signal Strength | |
| -65 ~ -25dBm | |
| System | |
| Web management:100M NMS port | |
| Language: English and Chinese | |
| Ethernet software upgrade | |
| General | |
| Dimensions | |
| 482mm×328mm×44mm (WxLxH) | |
| Weight | |
| 3.5kg | |
| Temperature | |
| 0~45℃(operation), -20~80℃(storage) | |
| Power supply | |
| AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | |
| Consumption | |
| ≤40W |
