Product model
|

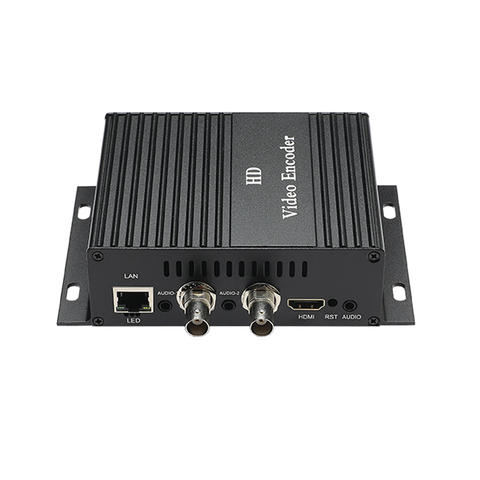

HD HDMI encoder
|
|
Input
|
1 HDMI input, 1 3.5MM channel audio input
|
|
Output
|
1 channel IP input,1 channel IP signal output
|
|
Video
|
|
Input resolution
|
1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480iAnd other conventional resolution
|
|
Coding standard
|
H.265/H.264
|
|
Coding level
|
H.265 main profile
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
|
Encoded size
|
640*360~1920*1080(Can customize)
|
|
Video bit rate
|
Rate control: CBR/VBR 16KBIT/S~12MBIT/S
|
|
Video frame rate
|
30
|
|
OSD
|
Character, images
|
|
Audio
|
|
Input selection
|
1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
|
|
Audio coding
|
AAC/MP3/G711
|
|
Audio bit rate
|
64Kb/s~384Kb/s
|
|
Sampling rate
|
32000,44100,48000 etc
|
|
IP
output
|
1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
|
|
System
|
|
Network protocol
|
Supports HTTP, RTSP, RTMP, UDP, multicast, unicast
|
|
Configuration management
|
Support IE configuration, remote upgrade
|
|
The common use
|
|
Power supply
|
12V~2A
|
|
power consumption
|
5W
|
|
Size
|
103mm * 70mm * 25mm(length*width*height)
|
|
Operating temperature
|
-20℃+ 60℃
|
|
Working humidity
|
<90%,Non-condensing
|
|
Weight
|
0.18KG
|
