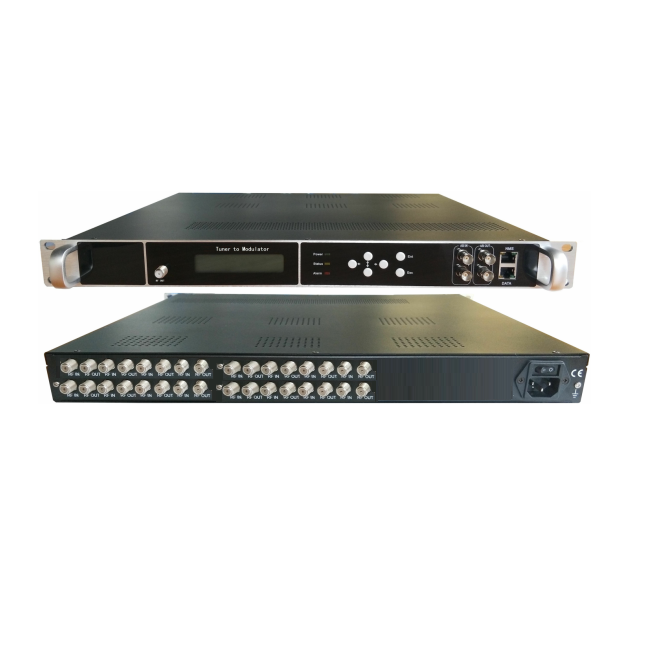

2404X wholesale dvbT OR t2 to dvb-c dvb-t 4/8/16/20/24 channel digital tuner to rf modulator
Short Description:
| Input | 4 Tuner (DVB-T/(T)/S/S2/S2X optional) and 2 ASI input |
| Tuner Section | |
| DVB-T/(T) | |
| Input Frequency | 30~1000MHz |
| Bandwidth | 6/7/8M |
| Version 1 | |
| DVB-S | |
| Input Frequency | 950~2150MHz |
| Symbol rate | 1~45 Msps |
| Signal Strength | -65~-25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤120 Mbps |
| DVB-S2 | |
| Input Frequency | 950~2150MHz |
| Symbol rate | QPSK 1~45 Msps 8PSK 2~30 Msps |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Max input bitrate | ≤120 Mbps |
| Version 2 (New) | |
| DVB-S | |
| Input Frequency | 950~2150MHz |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤160 Mbps |
| DVB-S2 | |
| Input Frequency | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps 32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤160 Mbps |
| DVB-S2X | |
| Input Frequency | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤160 Mbps |
| Multiplexing | |
| Maximum PID Remapping | 128per input channel |
| Function | PID remapping (automatically or manually) |
| Modulation | |
| DVB-C | |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| MER | ≥40dB |
| RF frequency | 30~999MHz, 1KHz step |
| RF output level | -20~0dbm(87~107 dbµV),0.1db step |
| Symbol rate | 5.0Msps-9.0Msps, 1ksps stepping |
| RF Out | 4*DVB-C carriers output |
| J.83A | |
| J.83B | J.83C |
| Constellation | |
| 16/32/64/128/256QAM | |
| 64/256 QAM | 64/256 QAM |
| Bandwidth | |
| 8M | |
| 6M | 6M |
| DVB-T | |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K, 8K |
| MER | ≥40dB |
| RF frequency | 30~999MHz, 1KHz step |
| RF Out | 2*DVB-T carriers output |
| RF output level | -20~0dbm(87~107 dbµV),0.1db step |
| TS Output | 2 ASI out as mirror of 2 RF carriers (BNC type) 2 MPTS over UDP out (RJ45, 100/1000M self-adaption) (for DVB-T RF out) 4 MPTS over UDP out (RJ45, 100/1000M self-adaption) (for DVB-C RF out) ---versionⅠ 8 SPTS over UDP out (RJ45, 100/1000M self-adaption) (for DVB-C RF out) --- versionⅡ |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| Language | English and Chinese |
| Upgrading | Web and USB |
| General | |
| Dimension | 482mm×300mm×44.5mm(W*D*H) |
| Weight | 3.7kg |
| Temperature | 0~45℃(Operation) ; -20~80℃(Storage) |
| Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
| Consumption | 25W |
