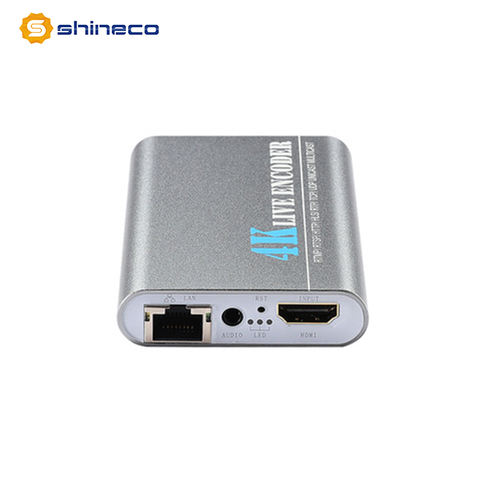

Full 1080P MPEG-4 4K Encoder for Live Streaming Broadcast
Short Description:
| Input | 1 HDMI input |
| Output | 1 channel IP signal output |
| SD Card | 256G |
| Video | |
| Input resolution | 3840*2160/2048*1152/1920x1080p/1280x720p/720*576i/640*480i etc |
| Coding standard | H.264/H.265 |
| Coding level | H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 640*360~3840*2160( customized) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~50MBIT/S |
| Video frame rate | 4K 30fps,1080P 60fps |
| OSD | Text ,images |
| Audio | |
| Input selection | 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio Support audio gain |
| Audio coding | AAC/MP3/G711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 RJ 1000M adaptive Ethernet port, TS stream standard, dual-stream |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP,HLS, UDP multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| The common use | |
| Power supply | 12V 2A |
| power consumption | 5W |
| Size | 102mm * 60mm *15mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.1KG |
