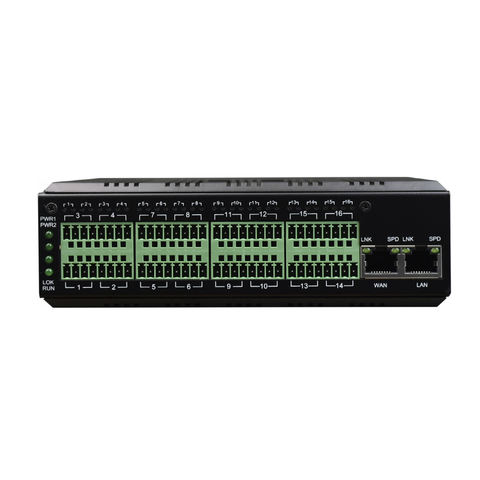

MQTT Gateway 16 Port Serial RS485 RS232 RS422 to Ethernet TCP IP Converter Industrial Serial Device Server with SNMP
Short Description:
| Model | FCT-1601 |
| Function description | transmit 16 channels of RS232/422/485 serial data on Ethernet. |
| Service port description | 16 RS232/422/485 serial ports；2 100M Ethernet electric ports |
| Power | redundant dual power input DC9-55V or AC7-43V,power consumption<5WOverload protection：support；reverse connection protection：support ；redundant protection：supportAccess terminal：4 core 5.08mm space plugged-in terminal |
| Size | shell：IP40 protection grade, aluminum alloy materialsize：133mm(L) x 120mm(W) x 42.0mm(H)Installing method: railed installation, wall-mounted installation |
| Weight | 0.65Kg/piece |
