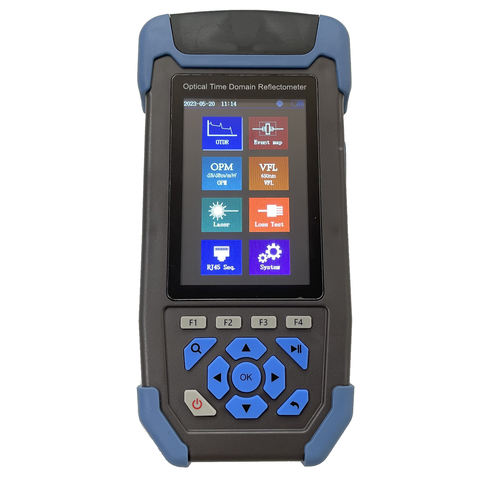

1610nm 24db 60km 8 Functions In 1 Device Fttx Ftth Online Live Pon Mini Otdr Fiber Analyzer Optical Time Domain Refrectometer
Short Description:
| Model | |
| 1610nm 24dB 60KM 8 in 1 type Online Mini-Pro OTDR | |
| Functions | |
| OTDR/Event Map/OPM/VFL/OLS/IL/RJ45 Sequence/Flashlight | |
| OTDR | |
| Wavelength | |
| 1610nm±20nm online | |
| Fiber Type | |
| G.652 SM Fiber | |
| Dynamic Range | |
| 24dB | |
| Event Blind Zone | |
| 3m | |
| ATT Blind Zone | |
| 8m | |
| Test Range | |
| 500m~60km | |
| Pulse Width | |
| 5ns~10us | |
| Ranging Accuracy | |
| ± (1m+Sampling Interval +0.005%*Test Distance) | |
| Loss Accuracy | |
| ±0.2dB/dB | |
| Sampling Points | |
| 16k~128k | |
| Sampling Resolution | |
| 0.05m~8m | |
| Reflection Accuracy | |
| ±3dB | |
| Data Storage | |
| Internal: ≥600, External: TF Card | |
| Laser Safety Level | |
| Class Ⅱ level | |
| File Format | |
| SOR Standard File Format | |
| Connector | |
| FC/APC (Interchangeable SC, ST) | |
| OPM | |
| Wave Range | |
| 800nm~1700nm | |
| Interface Type | |
| Universal Joint FC/SC/ST | |
| Test Range | |
| -50dBm~+26dBm | |
| Uncertainty | |
| ±5% | |
| Frequency Identification | |
| CW/270/330/1k/2kHz | |
| Calibration Wavelength | |
| 850/1300/1310/1490/1550/1577/1625nm | |
| OLS | |
| LD Type | |
| FP-LD | |
| Output Wavelength | |
| 1610nm±20nm | |
| Output Power | |
| ≥-5dBm | |
| Modulation Frequency | |
| 270/330/1k/2kHz | |
| Stability | |
| CW, ±0.5dB/15min (Test after15mins of preheating) | |
| Connector | |
| FC/APC (Interchangeable SC, ST) | |
| VFL | |
| Work Wavelength | |
| 650nm±20nm | |
| Output Power | |
| ≥10mW | |
| Mode | |
| CW/1Hz/2Hz | |
| Connector | |
| FC/SC/ST | |
| RJ45 Cable Length Measurement | |
| Test Range | |
| 300m | |
| Other Parameters | |
| Display | |
| 3.5 inch Color LCD | |
| Data Interface | |
| Micro USB | |
| External Storage | |
| TF Card | |
| Power Supply | |
| Polymer Li-battery: 3.7V, 4000mAh, Power Adapter: 5VDC, 2A | |
| Battery Life | |
| Standby>20h, Measuring Time>12h | |
| Operating Temperature | |
| -10℃~+50℃ | |
| Storage Temperature | |
| -40℃~+70℃ | |
| Relative Humidity | |
| 0~95%Non Condensing | |
| Weight | |
| ≤350g | |
| Dimension | |
| 173mm*82mm*37mm |
