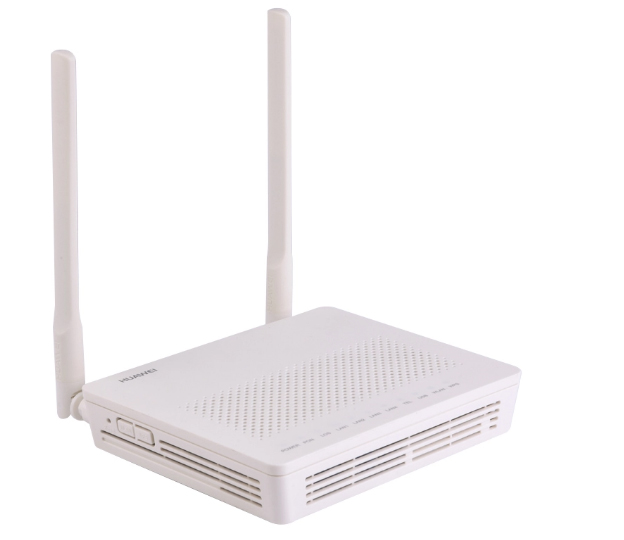

  HUAWEI EG8141A5 Gpon ONU

HUAWEI GPON ONU EG8141A5 1GE+3FE+1POTS+1USB+WiFi
The Huawei EchoLife EG8141A5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users, and provides 1 GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
From here,you can find the Huawei EchoLife EG8141A5 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.

Application and Advantage:

1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance



.






Specification



Item

Parameter

PON Interface

1*GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps

User Ethernet Interface

4*FE/GE auto adaptive Ethernet interfaces,  RJ45 connectors,1*WIFI

Power Interface

12V DC Power supply  An external 12V 1A AC/DC power supplyadapter

PON Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm

Tx Optical Power: -1~4dBm    Rx Sensitivity: -28dBm

Saturation Optical Power: -3dBm    Connector Type: SC

Optical Fiber: 9/125um single-mode fiber

Data Transmission Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps

Ethernet: 4*100Mbps  Packet Loss Ratio: <1*10E-12    latency: <1.5ms

Network Management

Status monitor, Configuration management, Alarm management, Log management

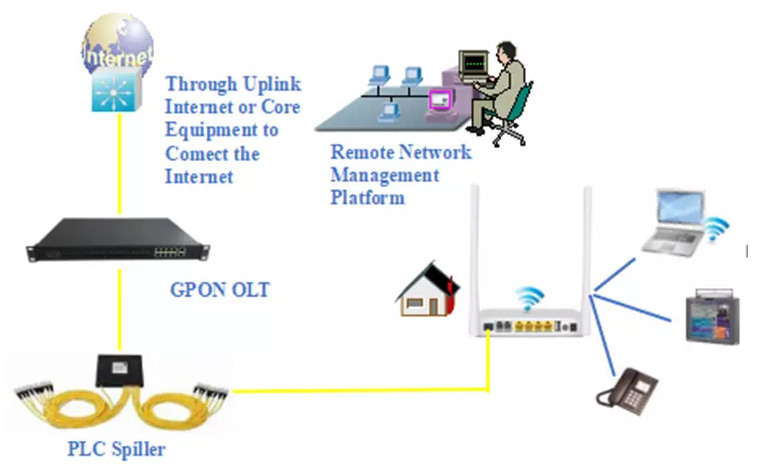

Solutions





.
