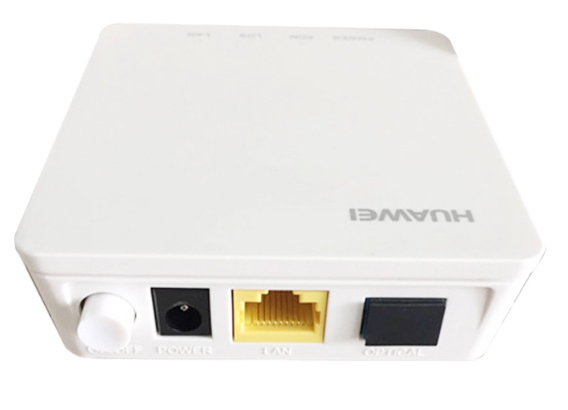

HUAWEI HG8310 Gpon ONU
Huawei HG8310 Modem Mini GEPON ONU with 1GE Huawei Echolife HG8310M GPON ONU
EchoLife Series Optical Network Terminals

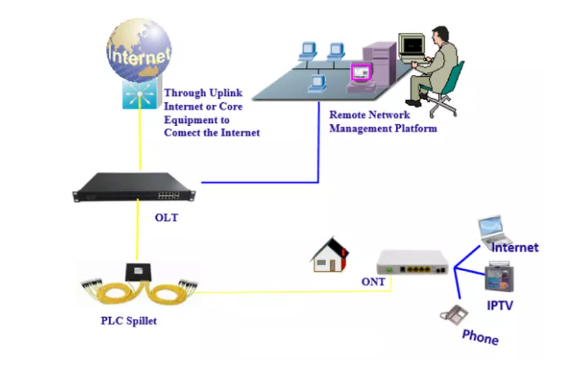

User-side Optical Network Terminals (ONTs) for Fiber-To-The-House (FTTH) solutions provide high-bandwidth access for Small Office/Home Office (SOHO) environments using GPON technologies.
EchoLife HG series ONTs provide POTS ports and FE/GE ports with auto-sensing function for seamless, high-performance access..
Specification
|
Technical items |
Descriptions |
|
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Fiber interface |
SC/PC |
|
RX sensitivity |
<-28dBm (1490nm) |
|
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
|
LAN |
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
|
Throughput |
Throughput can reach 900Mbps or more |
|
|
|
|
DC power |
12V 1A, external AC-DC power adapter |
|
Button |
Reset, power |
|
Power |
≤8W |
|
Operation |
Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
|
Storage |
Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
|
Dimension |
130*105*30mm(length*width*height) |
|
Net weight |
≤0.2Kg |
•
Solutions
.
Model
HUAWEI HG8310 Gpon ONU
Download
