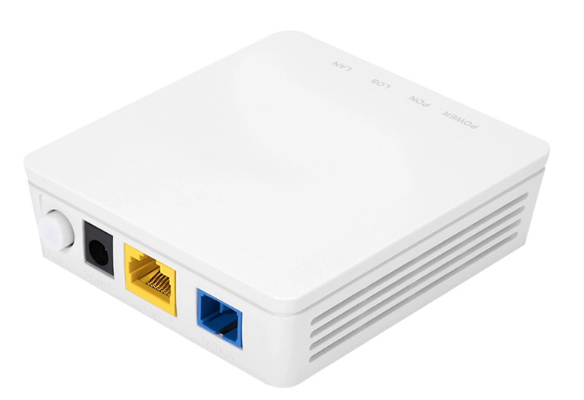

HG8010H is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8010H provides one GE/FE auto-adapting Ethernet port. The HG8010 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.

Key features:

1.EPON features
Security authentication mode: SN, password or SN+password.
Upstream/downstream FEC.
GEM port mapping mode: VLAN, 802.1p, VLAN+ 802.1p, IPToS, physical port.

2.Multicast features
IGMP V2&V3 snooping.

3. Ethernet features
VLAN filtering and VLAN transparent transmission.
VLAN N:1 aggregation and VLAN 1:1 translation.

4.Maintenance features
Local management using Web and remote management using OMCI
Optical power monitoring.
802.1ag Ethernet OAM.

5.Reliability features
Type B protection and rogue ONT detection.
