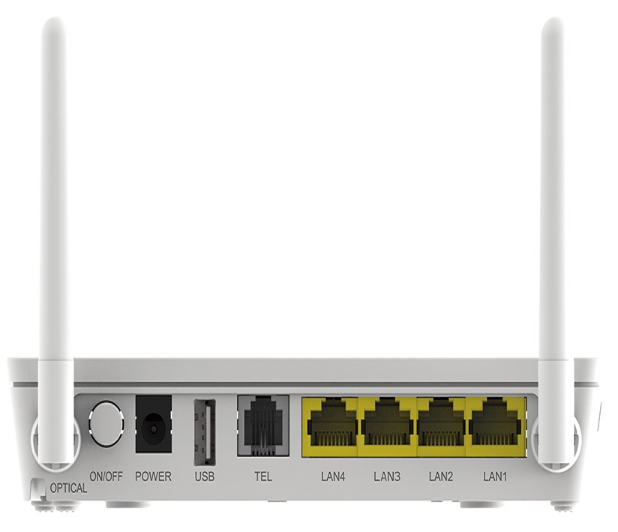

The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The HG8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.



Huawei GPON ONU HG8546M Product Specifications
*Dimensions(W x D x H):250 mm x 185 mm x 35 mm
*Port:1POTS+1GE+3FE+1USB+1Wi-Fi
*Average power consumption:8 W
*Operating environment:Temperature: 0℃~+40℃;
*Humidity: 5%–95%, non-condensing
*Power supply:Adapter input: 100–240 V AC, 50–60Hz;
*Adapter output: 11–14 V DC, 1 A
*Weight:About 500g (including the power adapter).

Maintenance features
*Local management using Web and remote management using TR069 and OMCI

*Optical power monitoring

*802.1ag Ethernet OAM

*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation

Green engery-saving features
*Dynamic power consumption adjustment

*With a backup battery, the guaranteed services can be selected flexibly

GPON features
*Class B+ optical module

*Security authentication mode: SN,
password or SN+password

*Upstream/downstream FEC

Routing features
*NAT function

*Internet, IPTV and VoIP services are automatically bound to ONT ports

*Virtual server, port trigger, DMZ,and DDNS

Reliability features
*Dual systems for software protection

*Type B protection and rogue ONT detection

*Lithium battery backup and backup battery monitoring

Voice features
*SIP and H.248 protocols

*Media stream and signaling stream separation

Multicast features
*IGMP V2&V3 snooping/IGMP proxy

Wi-Fi features
*802.11b/g/n, certified by the Wi-Fi Alliance

.
