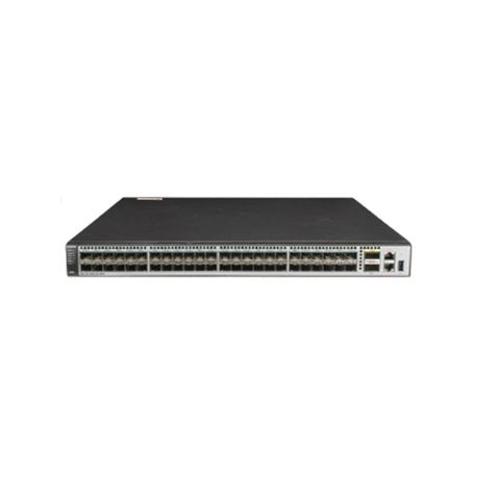

Huawei S6720-54C-EI-48S 10G Ethernet SFP Switch
Short Description:
| Fixed Ports | 48 x 10 Gig SFP+, 2 x 40 Gig QSFP+ ports |
| Extended Slot | One extended slot for 4 x 40 Gig QSFP+ interface card |
| MAC Address Table | 288k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN MappingQinQ and selective QinQ |
| IPv4 Routing | Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGPVRRP Policy-based routingRouting policy |
| IPv6 Routing | Static routeRIPng OSPFv3BGP4+ISISv6 |
| IPv6 Features | Neighbor Discovery (ND) PMTUIPv6 ping, IPv6 tracert, and IPv6 Telnet6to4 tunnel, ISATAP tunnel, and manually configured tunnelACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol typeMLD v1/v2 snooping |
| Multicast | Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSMMSDP |
| QoS/ACL | Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports |
| MPLS | MPLS, MPLS VLL, L3VPN |
| VPLS | Martini VPLS |
| Operating Environment | Operating temperature: 0°C to 45°C (long-term); -5°C to 50°C (short-term)Relative humidity: 10% to 90% (non-condensing) |
| Input Voltage | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 HzDC: Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC |
| Dimensions (W x D x H, mm) | 442 x 420 x 43.6 |
| Typical Power Consumption | Without subcard: 190W;With subcard: 209W |
