Processor
|
Dual-core, 700 MHz
|
|
Memory
|
256 MB
|
|
Flash
|
512 MB
|
|
Dimensions (W x D x H)
|
150 mm x 100 mm x 44 mm (5.91 in. x 3.94 in. x 1.73 in.), 1 U height
|
|
Weight
|
0.38 kg (0.84 lb)
|
|
Maximum power consumption
|
8 W
|
|
DC power input
|
Rated voltage: 12 V DC/24 V DC
Maximum voltage range: 8 V DC to 36 V DC
|
|
Recommended specifications for self-provided power modules
|
Rated output power: ≥8 W
Operating temperature: -25°C to +70°C (-13°F to +158°F)
Surge protection: 6 kV in both the differential mode and common mode, 1.2/50 us pulse
|
|
Management interfaces
|
1
|
|
USB interfaces
|
1
|
|
Service interfaces
|

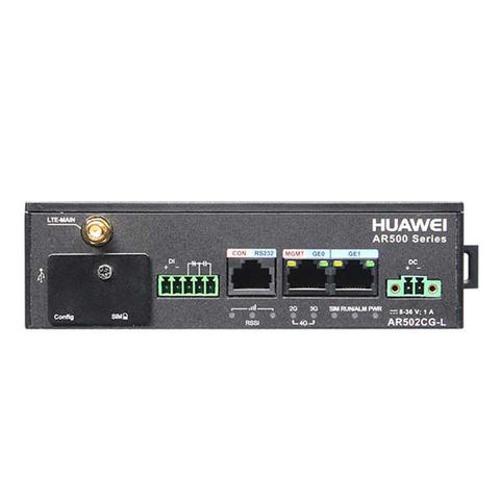

LAN interfaces: two GE electrical interfaces, which can be used as WAN interfaces
WAN interfaces: one LTE antenna interface
Industrial service interface: CON/RS232 interface and DI/DO interface
|
