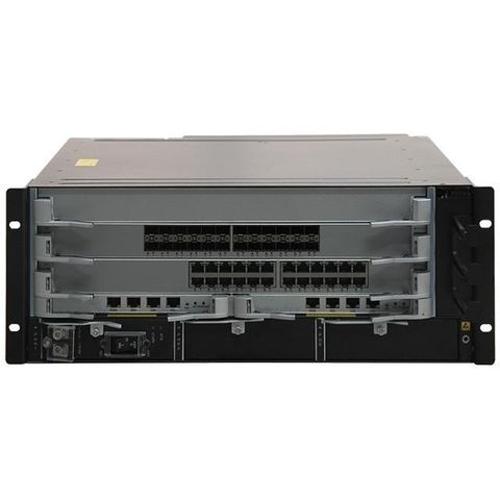

S7700 Switch S7703 Smart Routing switch with 10GE Capabilities
Short Description:
| Specifications | |
| S7703 | |
| S7706 | S7712 |
| Switching Capacity | |
| 1.92 Tbit/s | |
| 3.84 Tbit/s, 5.12 Tbit/s | 3.84 Tbit/s, 5.12 Tbit/s |
| Forwarding Performance | |
| 576 Mpps/1,440 Mpps | |
| 1,152 Mpps/2,880 Mpps | 1,344 Mpps/3,360 Mpps |
| Wireless Management | Native AC, wired and wireless convergence AP access control, AP region management, and AP profile management Radio profile management, unified static configuration, and centralized dynamic management Basic WLAN services, QoS, security, and user management AC deployment on different network layers |
| User Management | Unified management of wired and wireless users 802.1x, MAC, and portal authentications Charging based on traffic volume, online duration, and destination addresses (DAA mode) User authorization based on user groups, domains, and time ranges |
| iPCA | Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks |
| SVF | 64 clients (access switches) and 1K APS virtualized into a single device 2-level AS structure Unified management on HW and non-HW devices |
| Routing | IPv4 static routes, RIP, OSPF, IS-IS, and BGP4 IPv6 static routes, RIPng, OSPFv3, IS-Isv6, and BGP4+ IPv4/IPv6 equal-cost routes, policy routing, route policy IPv4 and IPv6 stack Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible automatic tunnel |
| Virtualization | CSS horizontal virtualization SVF vertical virtualization |
