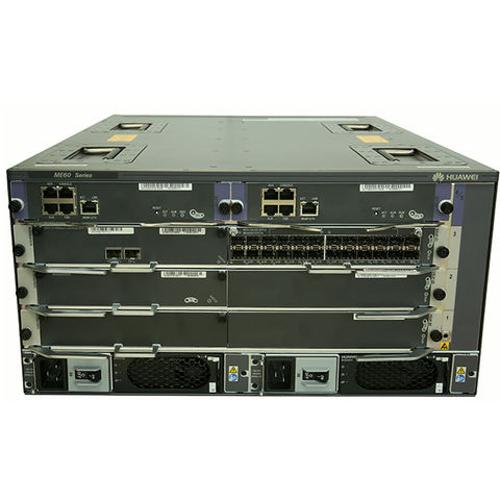

ME60 Series MSCG BRAS IP MPLS ME60-X3 supoorts DDA QoS Router
Short Description:
| Specifications | ME60-X3 |
| Switching Capacity | 1.08 Tbit/s |
| Slots | 5 slots, including 2 MPUs (1:1 backup) and 3 LPUs |
| Dimensions (W x D x H) | 442 mm x 650 mm x 175 mm (DC 4U) 442 mm x 650 mm x 220 mm (AC 5U) |
| Maximum Power Consumption | 1,070W (AC) 920W (DC) |
| Full Configuration Weight | 42 kg (DC) 52 kg (AC) |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1X User authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User accounting protocol: RADIUS, HWTACACS, and COPS User authorization protocol: RADIUS, HWTACACS, and COPS Policy protocol: COPS and COA |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS. The last mile QoS. Multicast replication of IPoE access users |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
