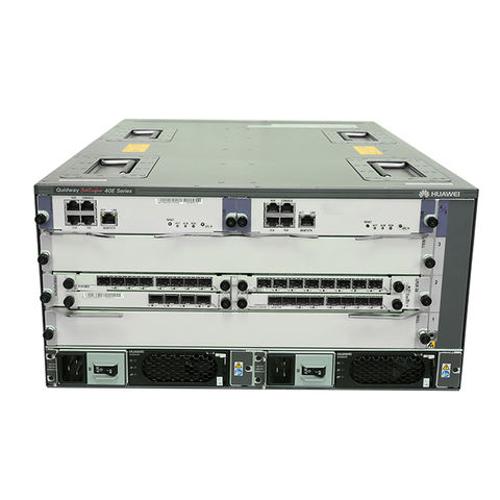

Huawei NE40-X3 40G universal service router 100G
Short Description:
| Component | |
| Description | Details |
| Fan module | |
| Located on the top of the chassis. Used for heat dissipation of the device. | See Chapter 3 “Heat Dissipation System”. |
| Board | |
| Includes two types of boards: Switch Routing Unit (SRU) and Line Processing Unit (LPU). Installed in the board area. The board cage has 10 slots, and can contain two SRUs and eight LPUs. | See Chapter 4 “Boards”. |
| Cabling trough | |
| Located under the board cage and used to the cable allocation. | See Chapter 5 “Cables”. |
| Air intake vent | |
| Constructs the dissipation system with the fans. | See Chapter 3 “Heat Dissipation System”. |
| Power supply module | |
| Located in the bottom of the chassis. An NE40 must be installed with two power supply modules operating in 1+1 redundancy. NE40-8 provides the AC and DC supply system. | See Chapter 2 “Power Supply”. |
| Cable | |
| Includes internal cable (power cable, signal cable and so on), optical fibers and external cable. | See Chapter 5 “Cables”. |
