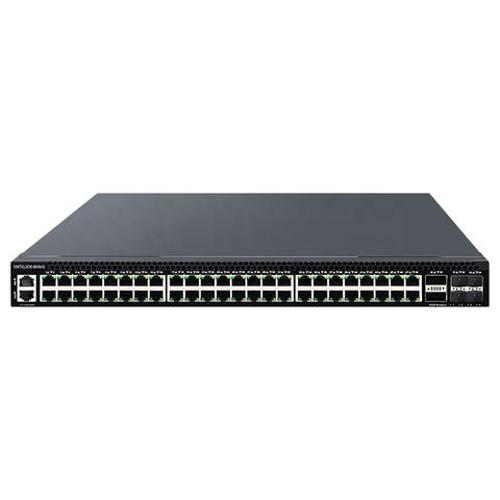

48 Port 2.5GbE Switch,L3 Managed e-Sports Mega-Switch with 4 x 40 QSFP+,4 x 25G SFP28,MLAG/Overlay/SDN, 96W
Short Description:
| I/O Interface | 100 ~ 240V; 50/60Hz |
| Ethernet Port | 48*2.5Gb RJ454*25Gb/10Gb SFP282*40Gb QSFP+ |
| Chip | CTC7132 |
| Management Ports | 1*Console Port (RJ45)1* Ethernet Management Port(RJ45) |
| Exchange capacity | 600Gbps |
| Power Supplies | 1*96W Non pluggable Power Supply |
| Fans | 4*Non Pluggable Fans |
| Airflow | Front-to-Back |
| Flash Memory | 8GB EMMC (OS)4MB SPI Flash(Boot) |
| DRAM | 2GB |
| Switching Capacity | 600Gbps |
| MAC address | 98304 |
| Size | 442mm*290mm*43.6mm |
| Software Features | |
| VLANs/Link Aggregation | Standard, QinQ, Private, Guest, Voice VLAN; LAG |
| xSTP/Ring | STP/RSTP/MSTP; ERPS, G.8031, G.8032 |
| L2 Multicast | IGMP Snooping, MVR |
| IPv4 Unicast/multicastRouting | Static, Black Hole, RIP, OSPFv2, IS-IS, BGP, Policy-based Routing, ICMP, ECMP; IGMP, PIM |
| IPv6 Tunnel/ Basic Protocols/Service | ICMP, NDP, PMTU; IPv6 over IPv4, ISATAP, DHCPv6, IPv6 Policy-based Routing |
| IPv6 Unicast/ multicast Routing | Static, RIPng, OSPFv3; MLD, MLD Snooping, MVR6, PIM-SMv6 |
| Reliability/Ethernet OAM | BFD, VRRP, Smart-link, MLAG; EFM, CFM, Y.1731 |
| QoS | Traffic behaviors, Traffic policing, Traffic shaping, Congestion management, Congestion avoidance, Traffic statistics, ECN |
| Network Virtualization | VARP ,VxLAN, BGP EVPN, GRE, NVGRE, GENEVE, DCBX, PFC |
| MAN IPRAN | LDP, MPLS, VPWS, VPLS, MPLS OAM, L3 VPN, MPLS ACL, MPLS QoS |
| Security/ Authentication | SSH , RADIUS, TACAS+, AAA, Dot1x, ACL, IP source Guard, CPU Protect, DDoS Protect |
| Network Management | DCHP, RMON, sFlow, IP SLA, EFD, NTP, SNMP, WEB, RPC-API, Smart Config |
