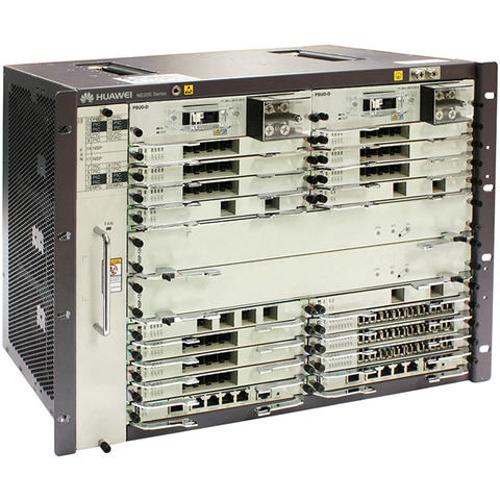

Huawei NE20E-S16 Enterprise Transportation Core Router System
Short Description:
| Dimensions (H x W x D) | |
| 353 mm x 442 mm x 220 mm (13.9 in. x 17.40 in. x 8.66 in.)(8U) | 353 mm x 442 mm x 220 mm (13.9 in. x 17.40 in. x 8.66 in.)(8U) |
| Weight (empty) | |
| 11.5 kg (25.36 lb) | 11.5 kg (25.36 lb) |
| Weight (full configuration) | |
| [NSP-A]: DC:32.6 kg (71.88 lb) [NSP-A]: AC:34.6 kg (76.29 lb) [NSP-C]: DC:34.8 kg (76.73 lb) [NSP-C]: AC:36.8 kg (81.14 lb) | [NSP-A]: DC:32.6 kg (71.79 lb) [NSP-A]: AC:34.5 kg (76.07 lb) [NSP-C]: DC:35.4 kg (77.97 lb) [NSP-C]: AC:37.3 kg (82.25 lb) |
| Cabinet installation standard | |
| ETSI 21-inch; IEC 19-inch | ETSI 21-inch; IEC 19-inch |
| Typical power consumption | |
| DC:696 W(NSP-A full configuration) AC:740 W(NSP-A full configuration) | DC:1060 W(NSP-C full configuration) AC:1100 W(NSP-C full configuration) |
| Typical heat dissipation | |
| DC:2258.1 BTU/hour(NSP-A full configuration) AC:2400.9 BTU/hour(NSP-A full configuration) | DC:3437.8 BTU/hour(NSP-C full configuration) AC:3567.6 BTU/hour(NSP-C full configuration) |
| DC input voltage | |
| input voltage range:-40V to -72V input rated voltage:-48V/-60V | input voltage range:-40V to -72V input rated voltage:-48V/-60V |
| AC input voltage | |
| input voltage range:180V to 264V input rated voltage:200V-240V/100V-127V(dual-live-wire) | [PSU1600–AC]:input voltage range:180V to 264V [PSU1600–AC]:input rated voltage:200V-240V/100V-127V(dual-live-wire) [PSU2400–AC]:input voltage range:90V AC to 290V AC/190V DC to 400V DC [PSU2400–AC]:input rated voltage:200V-240V/100V-127V(dual-live-wire)/240VHVDC |
| MTBF | |
| 138.61 years | 138.61 years |
| MTTR | |
| 0.5 hours | 0.5 hours |
| Availability | |
| 0.999999588 | 0.999999588 |
| Slot quantity | |
| 16 | 16 |
| Processing unit | |
| MPUE:single-core1.2 G MPUEA:double-core1.2 G MPUE1:eight-core1.5 G | MPUE1:eight-core1.5 G |
| Flash | |
| MPU:16 MB | MPU:16 MB |
| SDRAM | |
| MPUE:2 GB MPUEA:4 GB MPUE1:8 GB | MPUE1:8 GB |
| Storage | |
| 2 GB, eUSB | 2 GB, eUSB |
| Redundant MPUs | |
| 1:1 | 1:1 |
| Redundant NSPs | |
| 1:1 | 1:1 |
| Redundant fans | |
| The device can work properly for a short time at 40ºC if a single fan fails. | The device can work properly for a short time at 40ºC if a single fan fails. |
| Redundant power supply | |
| 1+1 | 1+1 |
| Forwarding performance | |
| 50 Mpps(NSP-50) 180 Mpps(NSP-120) 180 Mpps(NSP-A/B) 330 Mpps(NSP-C) | 50 Mpps(NSP-50) 180 Mpps(NSP-120) 180 Mpps(NSP-A/B) 330 Mpps(NSP-C) 488 Mpps Tbps(NSP-D) |
| Switching capacity | |
| 100 Gbps(NSP-50) 240 Gbps(NSP-120) 480 Gbps(NSP-A/B) 960 Gbps(NSP-C) | 100 Gbps(NSP-50) 240 Gbps(NSP-120) 480 Gbps(NSP-A/B) 960 Gbps(NSP-C) 2 Tbps(NSP-D) |
| Operating temperature | |
| Long-term: 0 °C to 45 °C (32°F to 113°F) Short-term: -5 °C to 55 °C (23°F to 131°F) Remark:Restriction on the temperature variation rate: 30 °C/hour | Long-term: 0 °C to 45 °C (32°F to 113°F) Short-term: -5 °C to 55 °C (23°F to 131°F) Remark:Restriction on the temperature variation rate: 30 °C/hour |
| Storage temperature | |
| -40 °C to 70 °C (-40°F to 158°F) | -40 °C to 70 °C (-40°F to 158°F) |
| Relative operating humidity | |
| Long-term:5% to 85% RH, non-condensing Short-term:5% to 95% RH, non-condensing | Long-term:5% to 85% RH, non-condensing Short-term:5% to 95% RH, non-condensing |
| Relative storage humidity | |
| 5% to 95% RH, non-condensing | 5% to 95% RH, non-condensing |
| Long-term operating altitude | |
| 3000m @ 40°C | 3000m @ 40°C |
| Storage altitude | |
| < 5000 m | < 5000 m |
