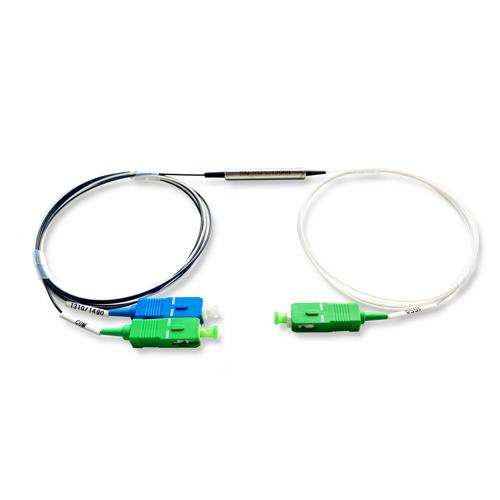

CATV WDM System 1310nm 1490nm 1550nm FWDM SC Steel Tube
Short Description:
| Parameters | |
| Unit | |
| Values | |
| Transmission Wavelength Range | |
| nm | |
| 1530-1600(or 1270-1350) | |
| Reflect Wavelength Range | |
| nm | |
| 1270-1350(or 1530-1600) | |
| Max. Insertion Loss | |
| Transmission | |
| dB | |
| 0.6 | |
| Reflect | |
| dB | |
| 0.4 | |
| Min.Isolation | |
| Transmission | |
| dB | |
| 30 | |
| Reflect | |
| dB | |
| Max.PDL | |
| dB | |
| 12 | |
| Min.Channel Flatness | |
| dB | |
| 0.1 | |
| Min.Return Loss | |
| dB | |
| 0.3 | |
| Max.Power Handing (CW) | |
| W | |
| 50 | |
| Max.Tensile Load (N) | |
| N | |
| 0.3,0.7,1,2,3 | |
| Fiber Type | |
| - | |
| SMF-28e | |
| Operating Temperature | |
| ℃ | |
| -5 to +70 | |
| Storage Temperature | |
| ℃ | |
| -40 to +85 | |
| Package Dimensions | |
| mm | |
| Φ5.5 x L35 |
