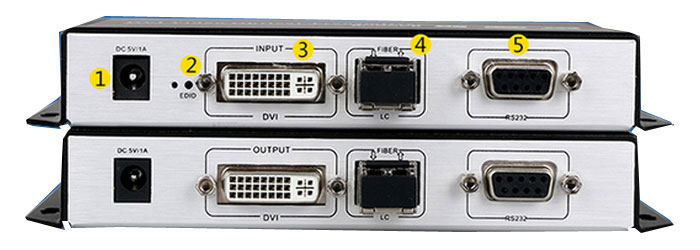

4k DVI optical fiber media converter


The DVI optical transmitter & receiver Series products adopt the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission. The computer host, high definition vedio signal etc, exporting the long distance of various resolution ratio of 1 channel DVI signal, solve the problem of only for short distance transmission.

This DVI Optical Transmitter & Receiver support various high definition resolution ratio transmission, the highest can be reach 1920*1080@120Hz.


Specification



Features:

*All digit, no-compress, high definition optical transmission
* Support 1 channel DVI high definition vedio transmission
*Compatible support DVI 1.0 standard
*Automatic identify and configurate various display mode
* Support 1920*1080@120Hz, the max bandwidth 10Gbps
* Max support 12bi color depth
*Max pixel clock 225MHz
* Built-in auto equalization and re-fixed time function, frames clear and steady
* Support E-DDC display mode memory and remote read function, guarantee display mode load correct at any time
*Giga optical transmission technology, high-capacity, easy to upgrade
* Optical WDM/CWDM/DWDM technology
* Single mode, multimode fiber transmission
*No need software set, support plug and play, and hot plug
* Built-in surge and static protection, three-level lightning protection design
* Apply to extreme hot and low temperature etc Industrial harsh environment
* Surface mount technology
* Industrial design, high reliability
*Support custom and OEM for users



Solutions



.

Model

Model
Specifications
HY-DVI 1-ch DVI，1-ch audio, SM/MM
HY-DVI-KVM
1-ch DVI，1-ch audio, 1-2 USB (keyboard and mouse) SM/MM
