1CH VGA optical fiber media converter
 1CH VGA optical fiber media converter

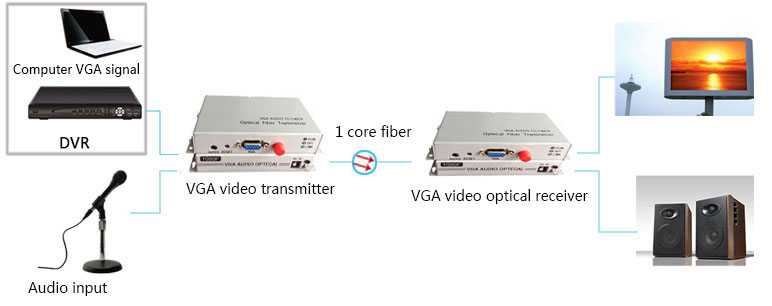

The device includes a sender and a receiver, which can transmit VGA video and Audio signal of PC to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product support HD VGA video signal transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
.



Features:

• Max video resolution 1920*1080 @ 60HZ
• Extension distance 2KM(MM)
• Pure hardware design, no need software driver, plug and play
• Support VGA, Audio interface






Function

Input signal

1-ch VGA+AUDIO

Output signal

Sender 1-ch VGA

Receiver 1-ch VGA + 1-ch AUDIO

Transmission distance

2000m(Multi mode)

Video



Video input

HD15PIN (male VGA)

Video output

HD15PIN (female VGA)

Video resolution

1080p

Audio

3.5mm stereo audio

Optical

Optical input/output

SM/MM SC/FC for option

Transmission wave length

850nm/1310nm/1550nm

Physical parameter

Size(L×W×H)

Sender:  138mm×115mm×30mm
Receiver:  138mm×115mm×30mm

Case

Metal

Color

Black

N.W.

0.76Kg

Power

Voltage

AC input: 100-240V~50-60HZ

Output: DC5V/3A

Sender power consumption

<6W

Receiver power consumption

<6W

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (Non-condensing)

Solutions



.

Model

Model
Specifications
HY-VGA
1-ch VGA video 1-ch audio FC Connector SM/MM
1CH VGA optical fiber media converter Datasheet.
Download
