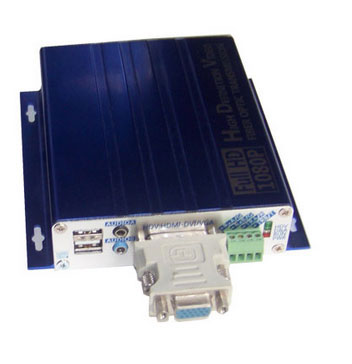

VGA KVM optical fiber media converter
 1CH VGA optical fiber media converter

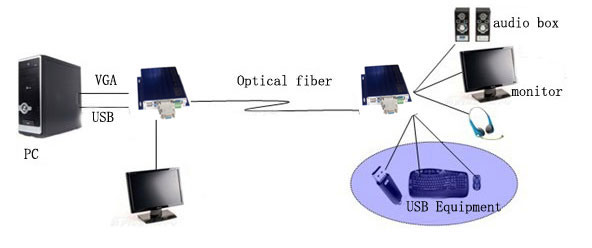

This high-end fiber VGA/DVI/HDMI extender supports high distance of VGA/HDMI transmission at real-time, it can extend video, audio, RS232,USB and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable. They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc..
.



Features:

• Support 1920*1080 @ 60Hz.
• Max extension distance 2KM(MM)/20KM(SM).
• Support plug and play, compatible with all operation system.
• Support VGA/DVI/HDMI,USB,audio,MIC,RS232 signals.
• Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal input indication.









.

Model

Model
Specifications
HY-VKM
1-ch VGA，2-ch audio , 2xUSB(Keyboard,Mouse) ,
1-ch RS232/RS485/RS422 data ,FC Connector ,SM/MM
VGA KVM optical fiber media converter Datasheet.
Download
