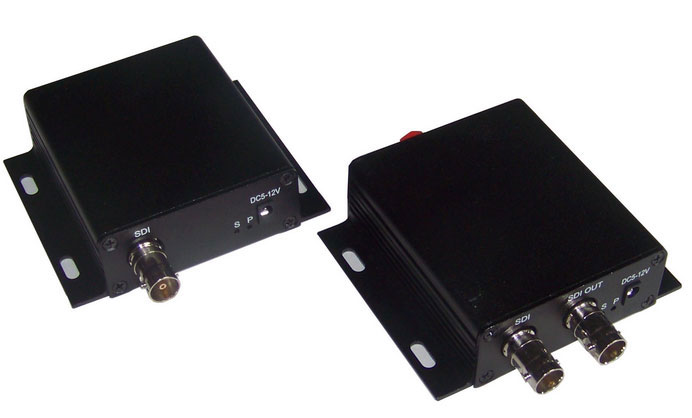

1 Ch SDI optical fiber media converter


Adopting international advanced all-digital 1000M optical transmitting technic, SDI SD/HD Video Digital Optical Converter could transmit high quality and non-distortion video signal via one single fiber in long distance. SL series SDI Converter is featured by high stability and clear quality, with LED status indicator, it is visually observed to working status of the device, at the same time, the switch value,voltage,working status and other signal can be mornitored by data RS485.

.


Specification



Features:


• Transmitting SD-SDI/HD-SDI/3G-SDI via one single fiber
• Transmitting speed upto 3.2Gb/s in max
• Applicating for SMPTE 292M (2.9Gb/s) clock recovery
• Supporting standards of
270Mbps(SD-SDI) ,
1.485Gbps/M(HD-SDI),
SMPTE 425M 3Gb/s Mapping(3G-SDI),
SMPTE 424M 3Gb/s serial interface(3G-SDI)
• 1310, 1550nm wave and upto 16 other CWDM wave ( comply with ITU-T G.694.2)
• Automotic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Supporting PTMP video transmitting structure ( Reverse Data invalid)
• Supporting regenerative relaying
• Supporting SFP transceiver hot-plugged
• Supported SDI video format:
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50,20p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94
525/29.97 NTSC
525/23.98 NTSC
720p50,20p59.94
1080p 23/24/30/50/59.94


Interface

LC Connector

Transmitting distance

Upto 80km in Max

Wavelength

1310/1550nm



Video

Interface

BNC

Input/Output impedance

 75Ω (unblance)

Input/Output voltage

Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp

Frequency

 3.2Gb/s

Differential gain(10%~90% APL)

 <1%

Differential phase(10%~90% APL)

 <0.7º

Standards of SDI

270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)





Data

Interface

 Industrial standard screw terminal

Data type

RS485/RS422/RS232/Manchester

Frequency

 0-4Mb/s

BER

 <10-9



Physical

Working Temp.

-40°c-+85°c

Working  Humidity

0-95% non-condensing

Working voltage

DC 5V/2A

MTBF

 ≥100000hours







Solutions



.

Model

Model
Specifications
HY-SDI-1 1-ch HD-SDI with 1 Ch embedded audio, Support SMPTE 292M/SMPTE 259M standard SM/MM
1 Ch SDI optical fiber media converter Datasheet.
