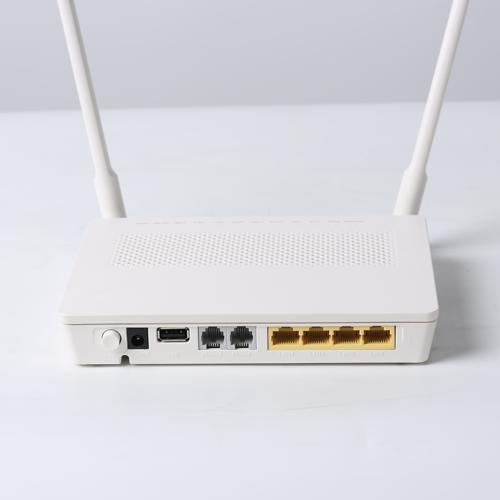

OEM HG8346M Xpon Huawei 4GE+2POTS+Wifi Modem FTTH Gpon ONU Network Access Original
Short Description:
| Fiber port | 1 GPON interface, 4FE+2POT+1USB+WIFI,SC single-mode, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/UPC |
| RX sensitivity | <-27dBm (1490nm) |
| WLAN | IEEE802.11b/g/n,2*2 MIMO, 2.4GWIFI,build-in antenna(2dBi) |
| LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
| Throughput | Downstream 950Mbps,Upstream 930Mbps |
| ONT Detection and Isolation of Active/Passive Hooligans | YES |
| L2 forwarding capability | 100 Mbit/s downstream (with any length packets)100 Mbit/s upstream (with any length packets) |
| IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction1Gbit/s with any length packets in upstream direction |
| IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction1Gbit/s with any length packets in upstream direction |
| Configuration method | NMS, Web, or TR069 |
| Voice protocol | SIP, H.248 |
| DC power | Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A |
| Button | Reset, power |
| Power | ≤8W |
| Operation | Working temperature: -0-+40℃ working humidity:5-95%(non-condensation) |
| Dimension | 280*240*85mm(length*width*height) |
| Net weight | ≤0.8Kg |
